Concept 28 / Soft rim with separate grille
Chalk Ember
Frozen R3.1 · 2026-09-11
Preserved to reproduce this earlier prototype. The selected print build is now 28.1 / R3.4; this frozen package keeps its original files.
Permanent R3.1 release linkDevice dimensions
mmRigid enclosure body · CAD R3.1
- Width
- 78 millimeters
- Height
- 150 millimeters
- Depth
- 24 millimeters
Overall with the soft rim and controls: 83.35 × 152.70 × 24.739 mm. STEP measurements exclude unmodeled finish and manufacturing variation.

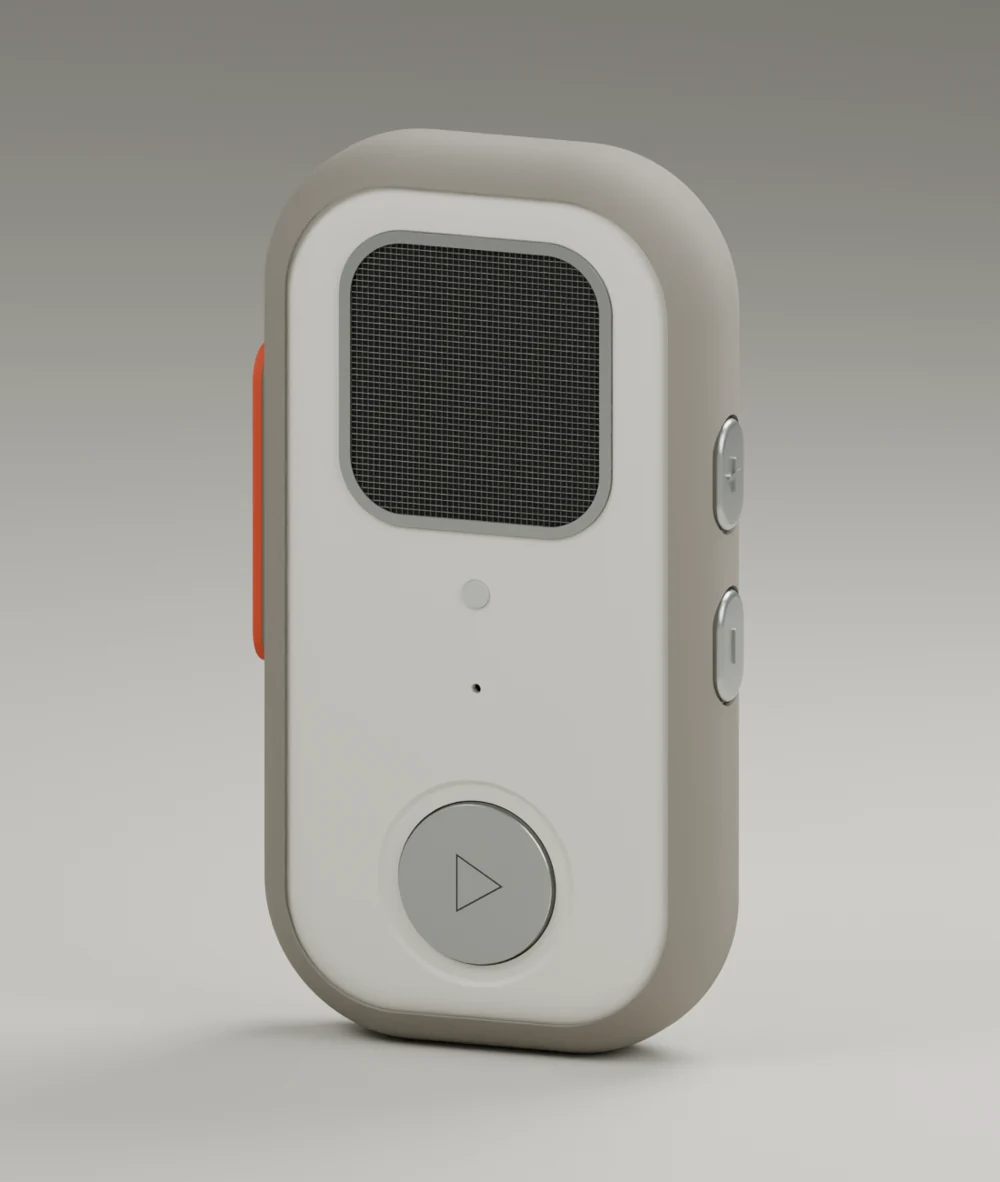

The printed Chalk Ember build, frozen as 28 R3.1 on 11 September 2026. Includes the latest Fusion CAD, 93 fabricated STEP groups, the exact Bambu P1S print package, material and proposed Pantone targets, assembly instructions and the RPS review checklist. Future geometry changes use R3.2.
Print files · Bambu P1S / PLA · 5.7 MB9-page illustrated handoff. The ZIP includes the same PDF and matching files.
Documentation C1 · 2026-09-11. Documentation C1 adds verified Pantone links and lookup instructions inside the handoff. CAD and print files remain frozen at R3.1.
Materials and process
Chalk rigid urethane shells, grey elastomeric rim and smooth orange elastomeric PTT. Brushed stainless circular play cap, stainless bezel and graphite woven grille. Natural silver aluminium volume caps, separate optics and inherited internal supports. Proposed Pantone references and physical finish approvals are documented.
Selected AI-generated Chalk Ember inspiration. CAD adapts its cosmetic direction to the 27 dimensions and final R2 functional internals; the woven mesh uses a simplified stock representation.
Material lab 28
A closer look. A finish that’s yours.
Original28
28 · R3.1 source finish.
R3.1 engineering · 78 × 150 × 24 mm core shell. Exploded offsets illustrate the assembly. Materials and colours are screen previews.
Original build scope
What to build first
Use the frozen R3.1 P1S files to reproduce this prototype. The owner reports that the print looks good; next record the real switch adjustment and closed-shell fit, populated PCB/U6, wiring, powered optics/acoustics and antenna results. Ask RPS to review this finished-part CAD for a first urethane-cast set, including thin features, fastening, shrink and finish samples. This is not a production/tooling release.
Confirm before the affected stage
- Switch mechanism
- Measure actual four LIDUOLE bodies, terminals after wiring, actuator/free/operating heights, travel and force. Fit and electrically test adjusted stacks, center/edge press and return with shell closed. Nominal sizes and analogous click travel are estimates.Jacob / Elian
- PCB and U6
- Use fb5acde7 PCB. Supplied STEP omits U6; nominal 24 x 24 x 2.4 mm placeholder is preliminary. Obtain corrected populated STEP or measure actual assembly, including solder standoff, connectors and shield clearance.Elian
- Antenna and RF
- Use Taoglas FXUB63.07.0150C and cable. Check fit, routing, metal clearance and cellular performance in complete case. Preserve exterior; investigate layout before resizing. GNSS antenna/cable omitted; PCB capability retained.Elian / RPS
- Battery and wiring
- Verify actual battery maximum thickness, padding/compression allowance, safe wire routing and connector/USB mate envelopes. Harness and J9 control assignment remain to be approved; do not use CAD lead models as pinouts.Elian
- Indicator optics
- Aligned right-angle guide is clear polymer; powered LED brightness, colour uniformity, leakage and clear-part process remain untested by this package. Opaque print proxies establish fit only.Jacob / RPS
- Acoustics
- Qualify woven mesh, scrim and adhesive without obstructing speaker; verify bottom-port microphone offset seal and membrane in assembled powered sample.Jacob / RPS
- Casting and fastening
- Agree resin/process, shrink, finish coupons, tolerances, 0.40 mm lips, thread forming/tapping and torque. Check screw lengths and blind floors; no insert pockets provided.RPS
- Appearance approval
- Match physical colour/texture coupons; proposed Pantones are starting targets, not measured matches. Select hardness, brush/grain direction and metal surface quality before a cosmetic batch.Jacob / RPS
- First article record
- Record exact printed/cast pieces, deviations and measured results. Owner reported good-looking print only. Approve batch scope/quantity after affected checks.Jacob / Max
Inside the build package / R3.1
Files for this earlier build.
The handoff explains the build. The part schedule identifies quantities, materials and exact filenames. Check each file’s material and process role. Engineering review files are not a fabrication release.
- Native Fusion and full reference assembly
- 93 current fabricated component STEP groups
- Exact P1S ZIP, five projects and 24 role-labeled meshes
- 14 cutting profiles for shims and grille materials
- Nine-page RPS brief, BOM, material/Pantone targets and assembly guides
- PCB source release, geometry checks and frozen file manifest
Includes the handoff PDF, parts schedule and file manifest. Assembly views show how the represented parts fit together. Follow the handoff’s scope and open-item list before making parts.
Supporting engineering and archive
For individual assembly files, working inspection records or original engineering sources. The two downloads above contain the curated handoff. Original packages include development history and optional studies.
Current source and verification archive
Walkie_One_28_R3_1_CAD_and_Verification.zip
ZIP · 31.0 MB
Includes editable sources and supporting evidence. Use the primary download for the current handoff.
File checksum
SHA-256: 6bdf97542c067725890aa5d540a0ae6f18467b24493b36d6d071ec2274de90c7Individual assemblies and working records
