Concept 27 / Soft rim
Chalk and Powder
Device dimensions
mmRigid enclosure body · CAD R2
- Width
- 78 millimeters
- Height
- 150 millimeters
- Depth
- 24 millimeters
Overall with the soft rim and controls: 83.35 × 152.70 × 24.739 mm. STEP measurements exclude unmodeled finish and manufacturing variation.
The approved chalk case, soft grey rim, pewter controls and orange PTT with the SR2 component-support functions adapted to Concept 27. Includes current CAD, placed electronics, individual parts, soft-stock definitions, an illustrated guide and measured checks.
8-page illustrated handoff. The ZIP includes the same PDF and matching files.
Materials and process
Matte chalk-white rigid polymer, warm-grey TPU 85A rim and orange ribbed TPU PTT grip. Front and volume faces target brushed, warm-grey anodized 6061 aluminium on rigid carriers with 0.10 mm bond layers. Material grades, process, adhesive and physical finish samples remain to be qualified.

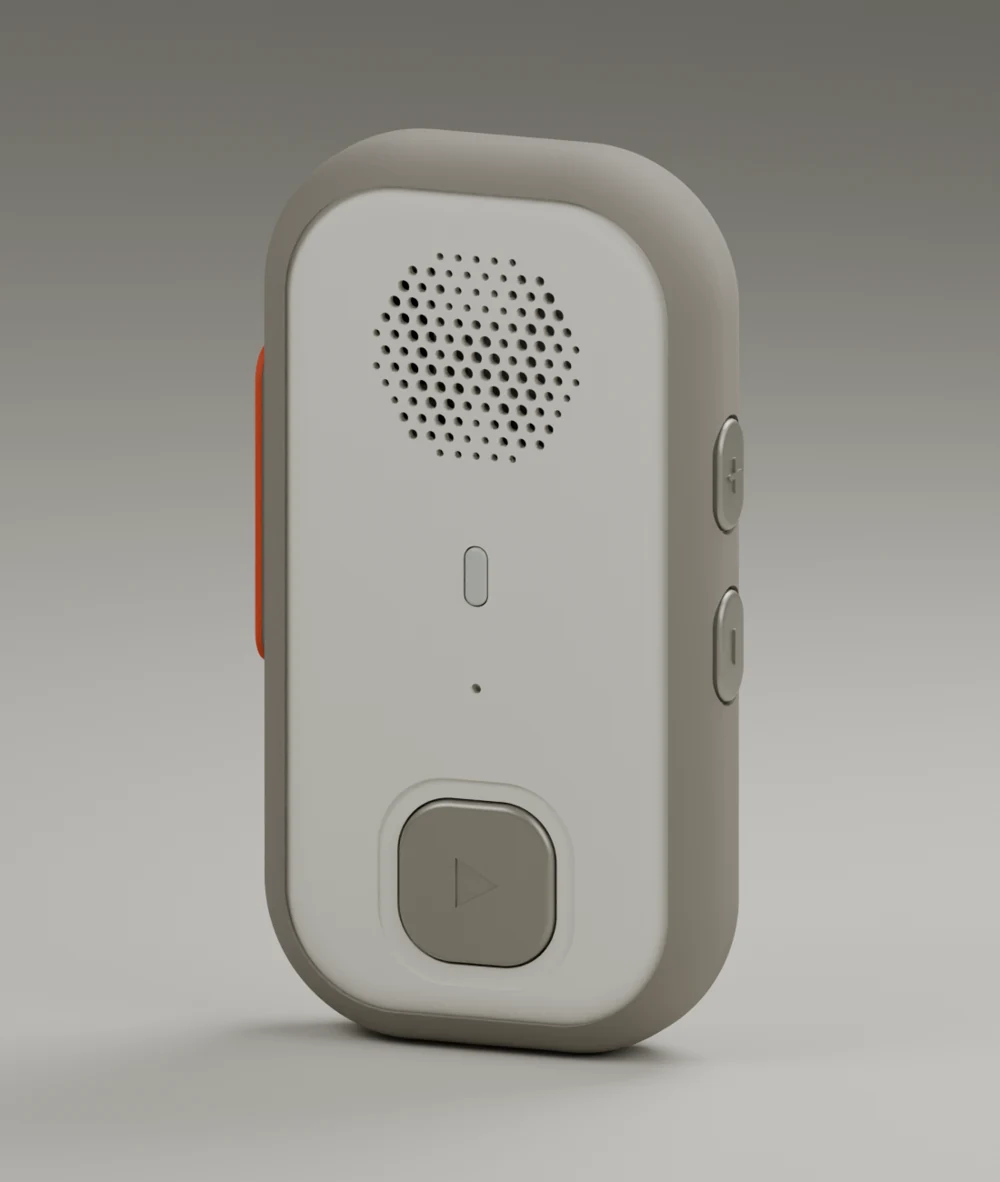

Approved AI-generated appearance reference. The current CAD views show the modeled R2 enclosure and internal support geometry.
Material lab 27
A closer look. A finish that’s yours.
Original27
27 · R2 source finish.
R2 engineering · 78 × 150 × 24 mm rigid enclosure body. Exploded offsets illustrate the assembly. Materials and colours are screen previews.
Original build scope
What to build first
Review the actual hardware and material samples, then follow the assembly sequence. Install front keepers before the PCB; antenna-frame screws before the upper battery liners; fit the flexible rim after rigid closure. Qualify switch overtravel, soft-stock loads, harness, optics and process tolerances on real parts. The 56 reference solids are not 56 print jobs.
Confirm before the affected stage
- Before fabrication
- Confirm actual component revisions, machining/printing capability, pilot preparation and screw engagement. Select exact screw stock and torque.Mechanical / supplier
- Fit samples
- Qualify TPU rim strain, orange grip studs, lens press-fit, metal carrier bonds and process tolerances on coupons.Mechanical / materials
- Control bench trial
- Measure rest clearance, actuation, return and hard-stop tolerances with actual switches. Datasheet pretravel is not a permitted maximum overtravel.Mechanical / electrical
- Soft-stock selection
- Select foam/silicone grades, free thickness, compression force and attachment. Check PCB edge contact and broad battery load without pouch point pressure.Mechanical / materials
- Functional assembly
- Route actual harness/coax and verify USB cable model. Qualify microphone seal/membrane, horizontal LED light transfer and antenna performance.Electrical / acoustic / RF
- Prototype validation
- Inspect insertion and service sequence on real parts; test repeated operation, thermal behaviour and durability before production release.Product / engineering
Inside the build package / R2
Files for this earlier build.
The handoff explains the build. The part schedule identifies quantities, materials and exact filenames. Check each file’s material and process role. Engineering review files are not a fabrication release.
- CASE, placed hardware, individual parts and free-state stock STEP
- 56 meshes with distinct material / process roles
- 16 polymer-part 3MF geometry containers
- Eight-page handoff, BOMs and assembly / shop notes
- Editable CAD, measured parameters and preview source
- Six CAD angles, exploded and interior views
- Portable Material Lab viewer
- Source, geometry, motion and package checks
- Preserved R1, original OEM and Elian SR2 inputs
Includes the handoff PDF, parts schedule and file manifest. Assembly views show how the represented parts fit together. Follow the handoff’s scope and open-item list before making parts.
