Concept 27 Urethane / Soft rim
Chalk and Powder
Device dimensions
mmRigid enclosure body · CAD UC1
- Width
- 78 millimeters
- Height
- 150 millimeters
- Depth
- 24 millimeters
Overall with the soft rim and controls: 83.35 × 152.70 × 24.739 mm. STEP measurements exclude unmodeled finish and manufacturing variation.
A separate urethane-casting option for Concept 27, preserving the approved soft rim, centred microphone and orange Original talk button. Includes finished CAD, casting masters, a grille drilling schedule and Original / Palladium finish targets. The existing R2 option stays available.
6-page illustrated handoff. The ZIP includes the same PDF and matching files.
Materials and process
Rigid urethane shells and separate elastomeric urethane rim / PTT grip; Shore A 80-85 evaluation target. Internal PA12 carriers, aluminium control caps, optics and stock retain separate processes. Original and Palladium finish targets are included. RPS must approve resin grades, thin-wall release, finishes, critical fits and screw durability.

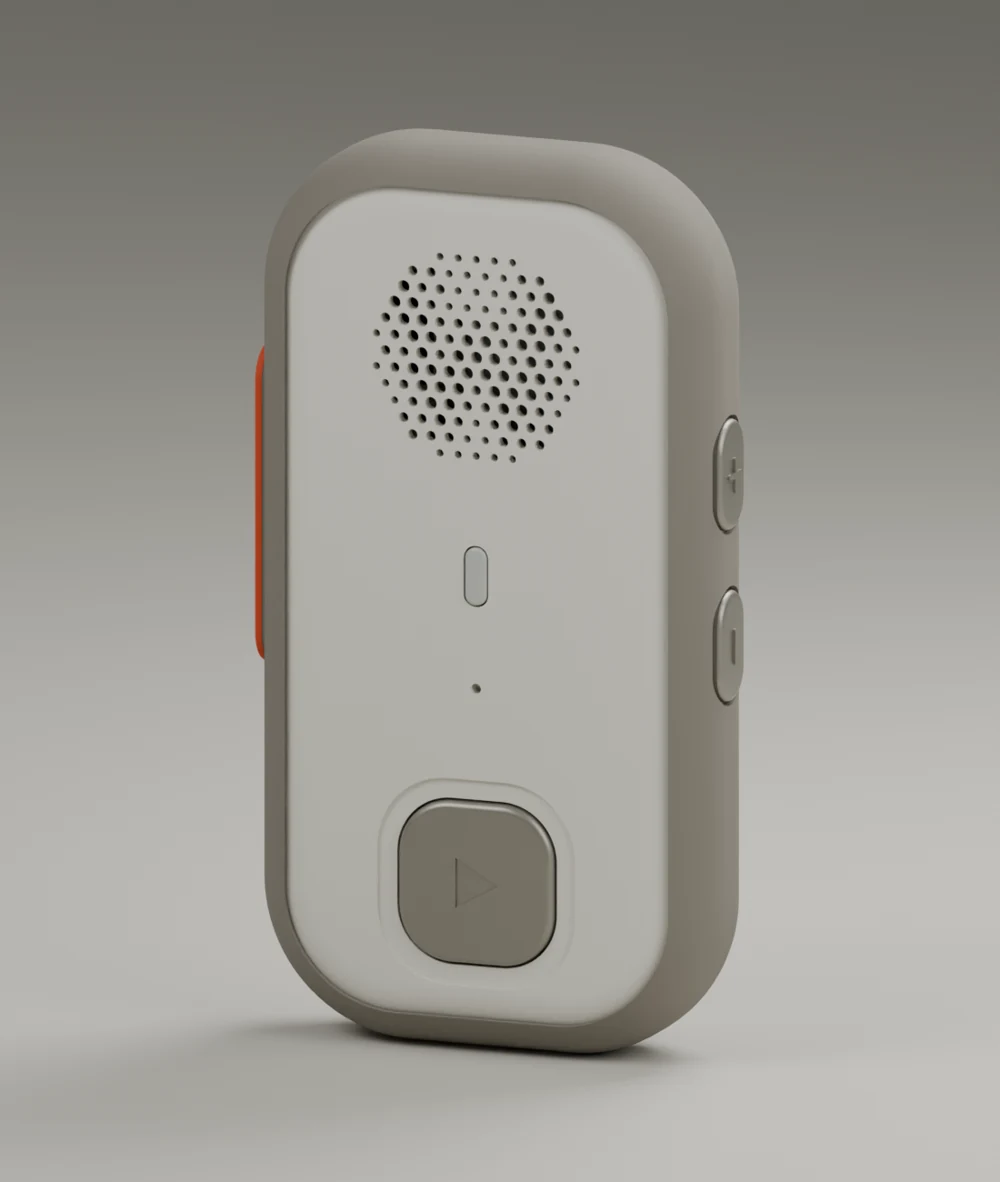

Approved Concept 27 appearance reference, shared with R2. UC1 CAD views show the finished casting-review geometry; the separate front casting master is deliberately blank in the grille region.
Material lab 27 Urethane
A closer look. A finish that’s yours.
Original27 Urethane
27 Urethane · UC1 source finish.
UC1 engineering · 78 × 150 × 24 mm rigid enclosure body. Exploded offsets illustrate the assembly. Materials and colours are screen previews.
Original build scope
What to build first
Have RPS review the four casting masters, thin retention walls and screw interfaces, then approve material / finish samples and a measured first article. Drill the blank front master’s 121 grille holes after casting. Fit actual electronics and qualify control feel, closure, soft-part loads and durability before a run. UC1 is a supplier-review package, not a fabrication release.
Confirm before the affected stage
- Before tooling
- Select rigid and elastomeric urethane grades; confirm cure, shrink, tear resistance, aging, sweat/skin compatibility and coating adhesion. Shore A 80-85 is an evaluation target, not a qualified resin.RPS + Walkie One
- Mold design review
- Approve split lines, peel directions, gates and vents. UC1 has 16 local one-degree boss tapers; remaining straight walls, holes and undercuts need silicone-tool review. No whole-part release approval is implied.RPS
- Thin features
- Review the inherited 0.8 mm rear battery divider and approximately 0.75 mm microphone cradle wall. Confirm fill and demold survival on a first article, or request local thickening / a separate carrier. General walls and all narrow regions have not been thickness-certified.RPS + mechanical lead
- Fastening / service
- Qualify all existing pilot bores, screw engagement and assembly torque in the selected urethane. Repeated-service thread durability is unproven. Inserts are preferred for frequent service but need a new boss/insert design; UC1 does not contain inserts and must not be quoted as insert-ready.RPS + mechanical lead
- Finish sample
- Approve physical Original and Palladium samples under agreed lighting. Pantones are proposed matches to digital references, not approved colour standards. Preserve matte soft parts and orange Original PTT. Mask fits; establish coating allowance.RPS + Jacob
- First article
- Measure finished interface datums, drill grille using supported workholding, dry-assemble supplied electronics, and test buttons, closure, optics, sound, USB, battery retention and RF. Validate drop / wear / repeated service before a run.RPS + Elian
Inside the build package / UC1
Files for this earlier build.
The handoff explains the build. The part schedule identifies quantities, materials and exact filenames. Check each file’s material and process role. Engineering review files are not a fabrication release.
- Finished assembly / individual STEP and four separate casting masters
- 56 part and four casting-master STL meshes with process roles
- Six-page handoff, materials, colours, drilling and first-article schedules
- Editable UC1 source and preview settings
- 105 preserved R2 input files
- Geometry, source integrity and export checks
- Nine CAD views and a portable finish viewer
Includes the handoff PDF, parts schedule and file manifest. Assembly views show how the represented parts fit together. Follow the handoff’s scope and open-item list before making parts.
