Concept 5.2 / Lozenge

Rubber Bumper + Rigid Core

R8Earlier version

Device dimensions

Baseline enclosure body · CAD R8

Width: 88 millimeters
Height: 136 millimeters
Depth: 27.2 millimeters

Maximum width including controls: 89.164 mm. Complete 26.2 mm candidate included; use its matching front parts and thin microphone seal. No additional thickness reduction in R8.

R8 adds a more printable W grille with 1.0 mm webs, USB-C shell support, a six-tab cable guide and easier battery access. The complete package includes 27.2 mm baseline and 26.2 mm candidate CAD, native Fusion files, STL/3MF, cut profiles, coupons and a ten-page illustrated build guide.

Read handoff · PDF Download engineering files · 149.3 MB

10-page illustrated handoff. The ZIP includes the same PDF and matching files.

Materials and process

23 rigid PA12 parts per configuration; eight final-size cast-polyurethane masters; one aluminum play key; one optical PMMA guide; eight cut-sheet pieces. STL/3MF includes process references as well as printed parts. Follow the BOM and illustrated guide; coupons, compensation, finishes and physical performance require first-article validation.

Customise this design in 3D

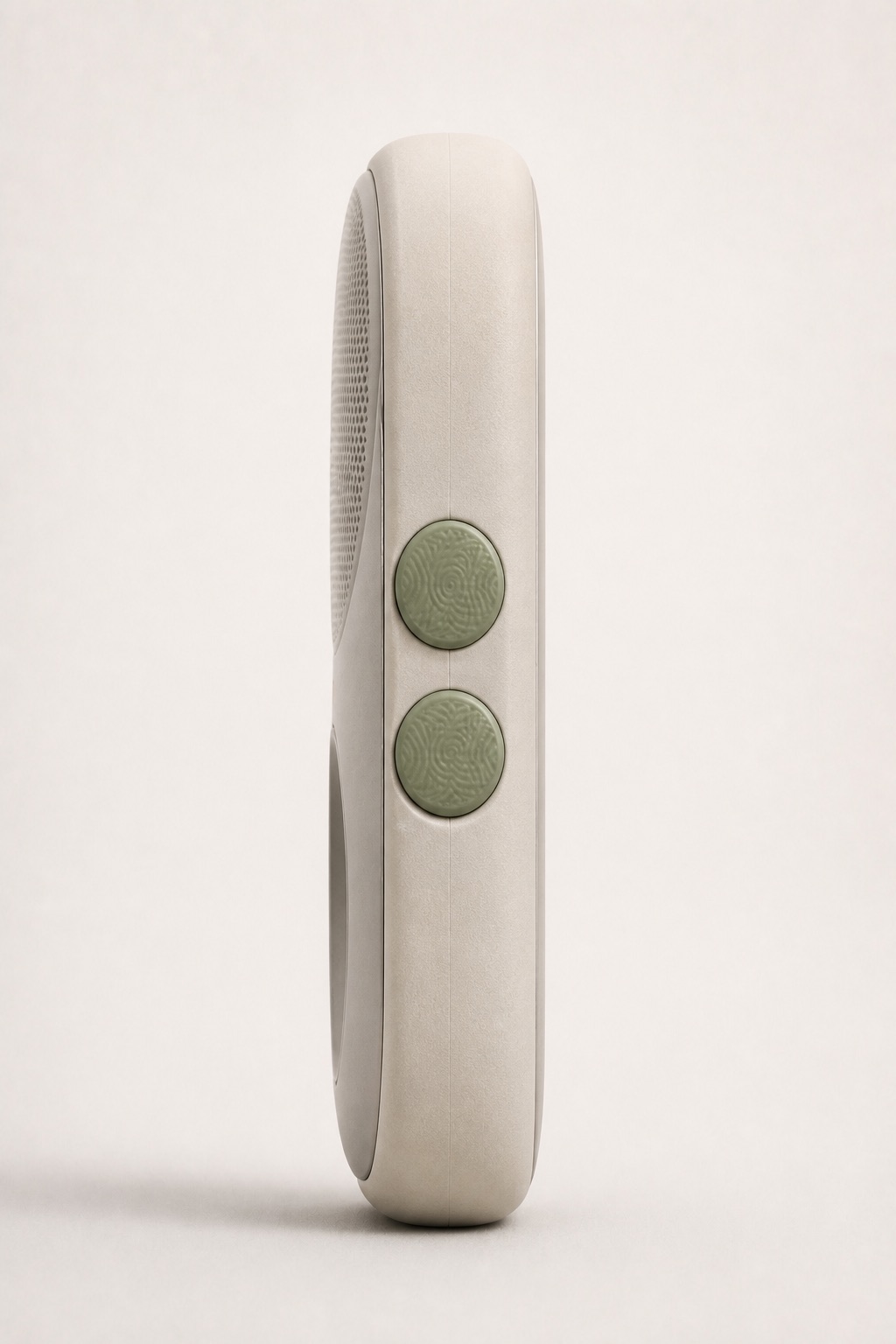

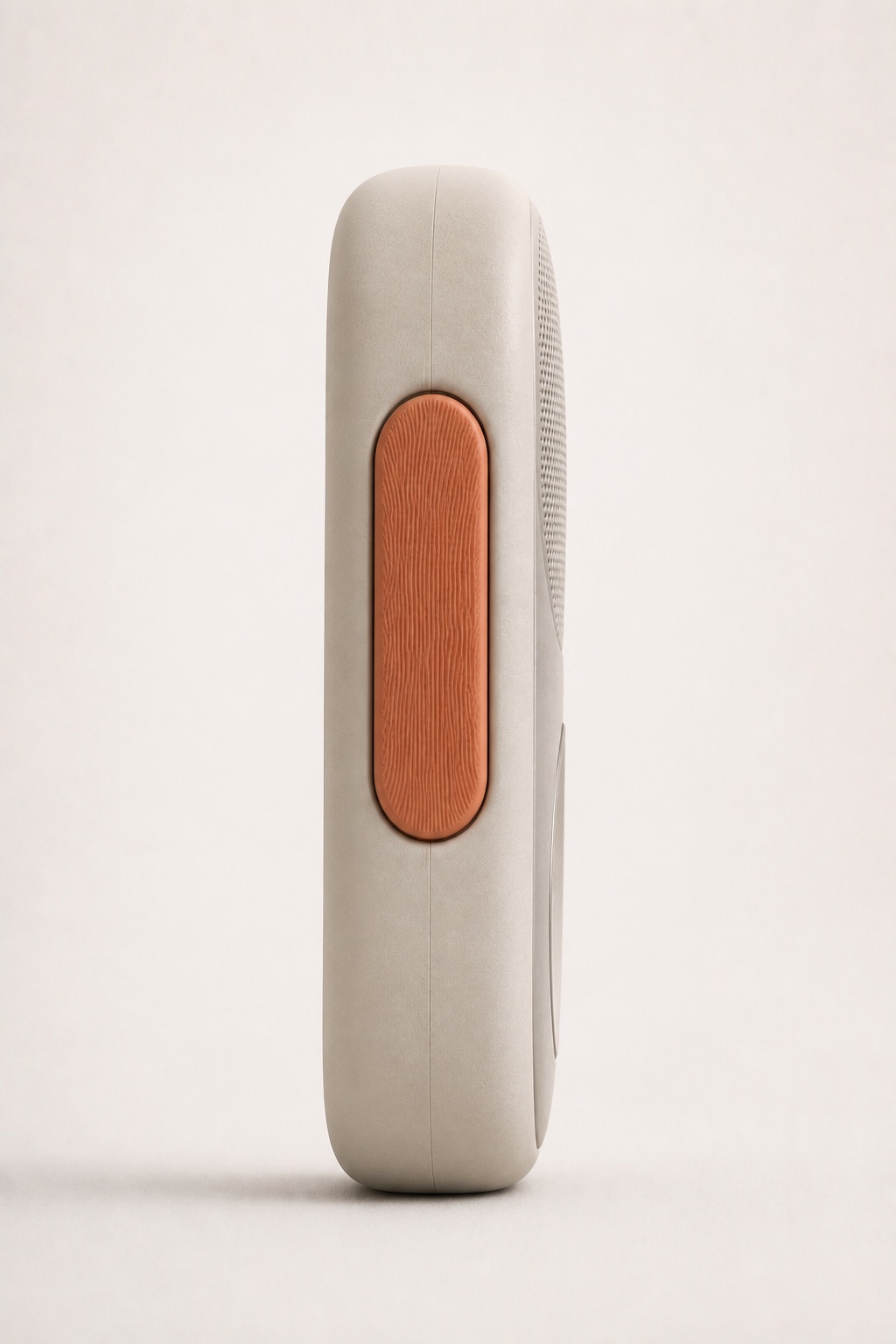

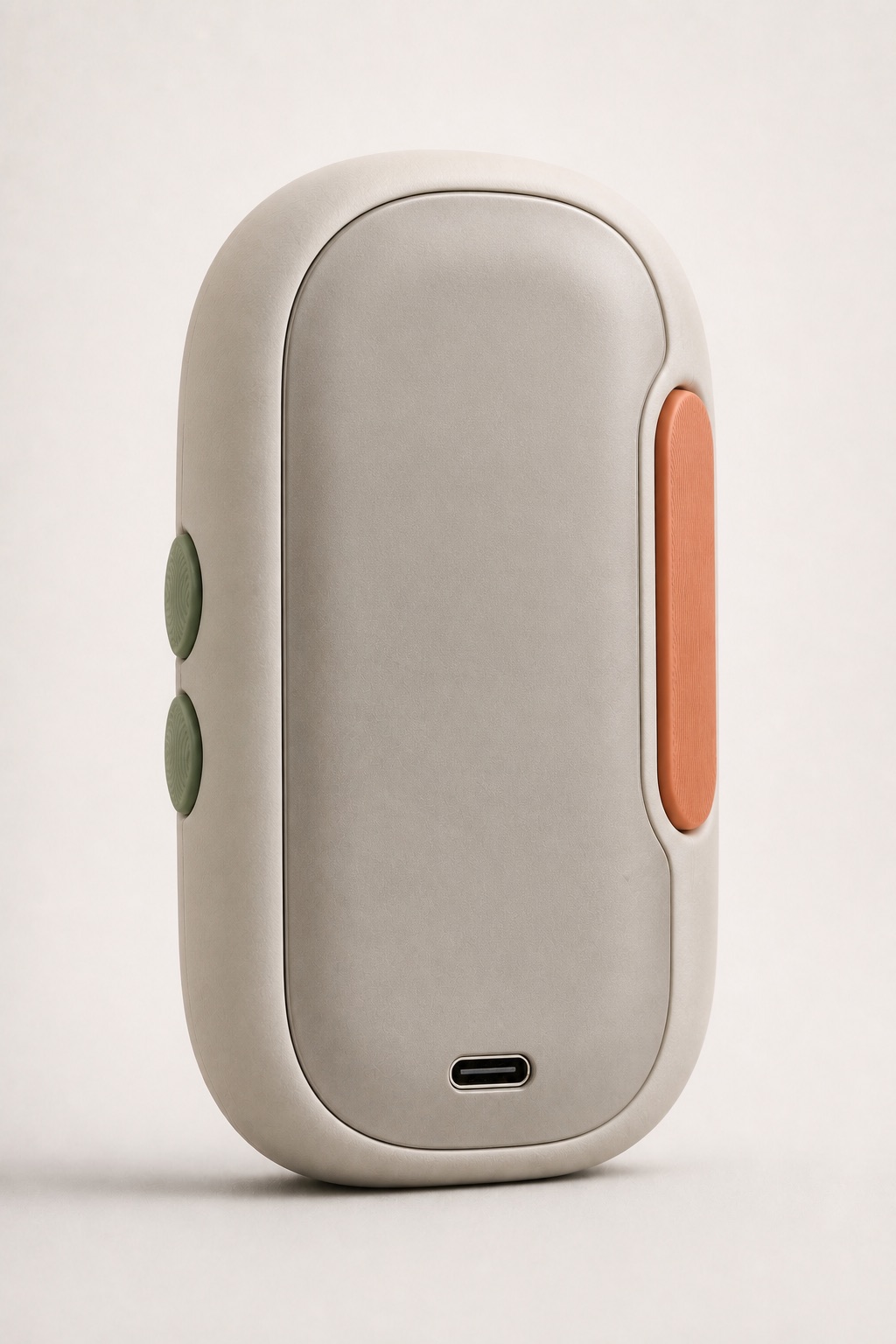

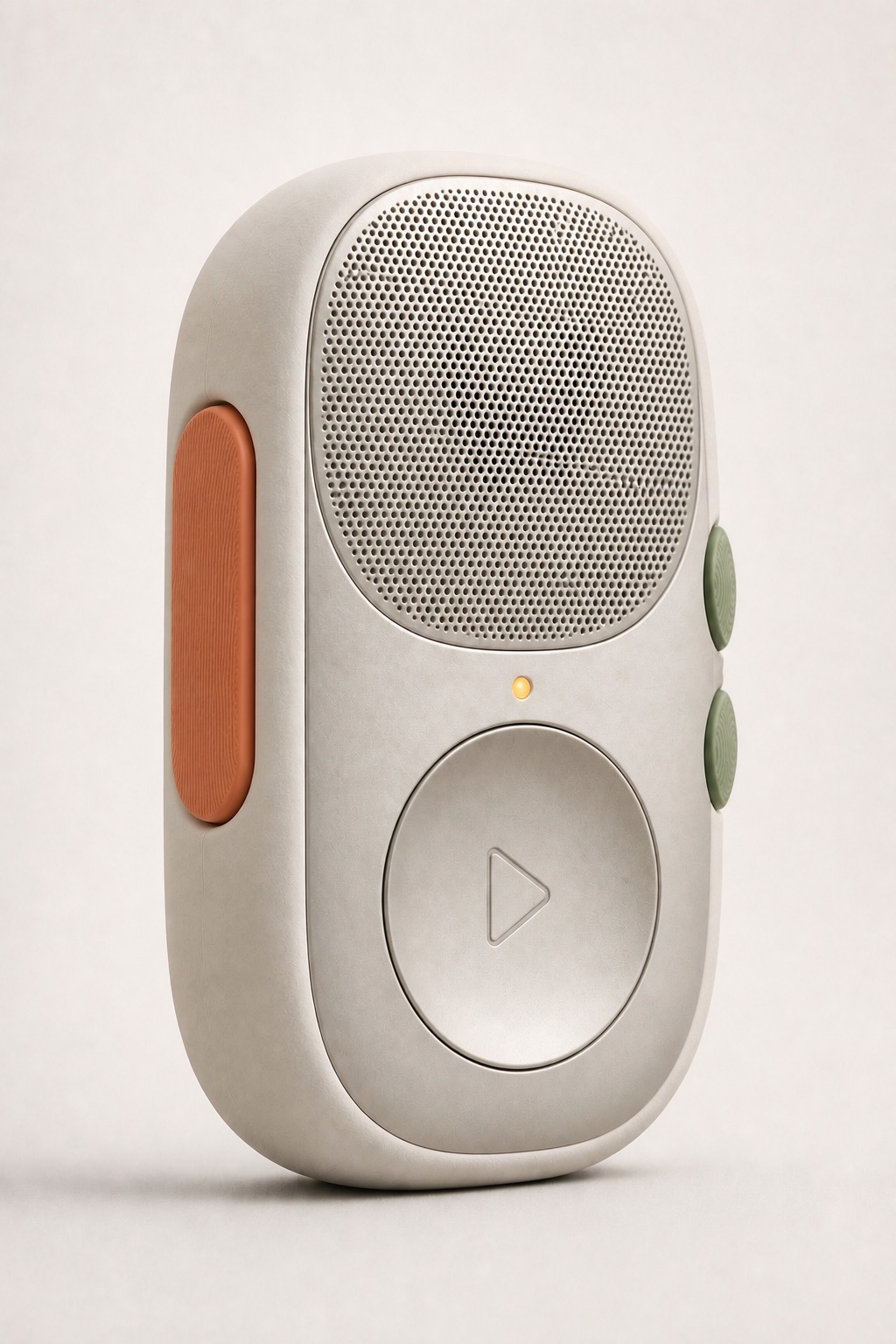

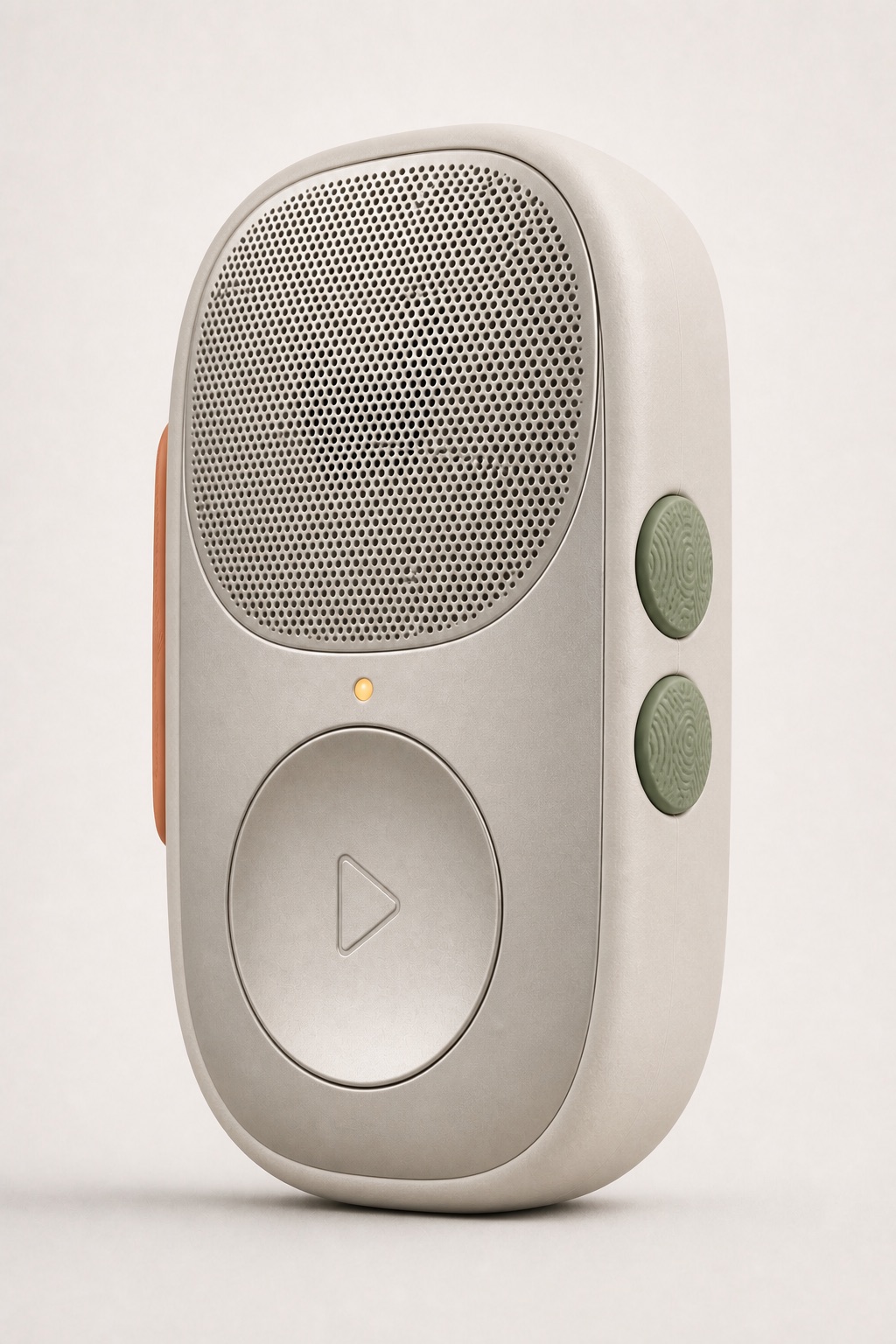

Rubber Bumper + Rigid Core inspiration, view 1 of 6

1/6

Front · Drag, use the arrow keys, or choose an angle.

Design inspiration. See CAD for the modeled geometry.

Material lab 5.2

A closer look. A finish that’s yours.

THE MATERIAL EDITEngineering R8

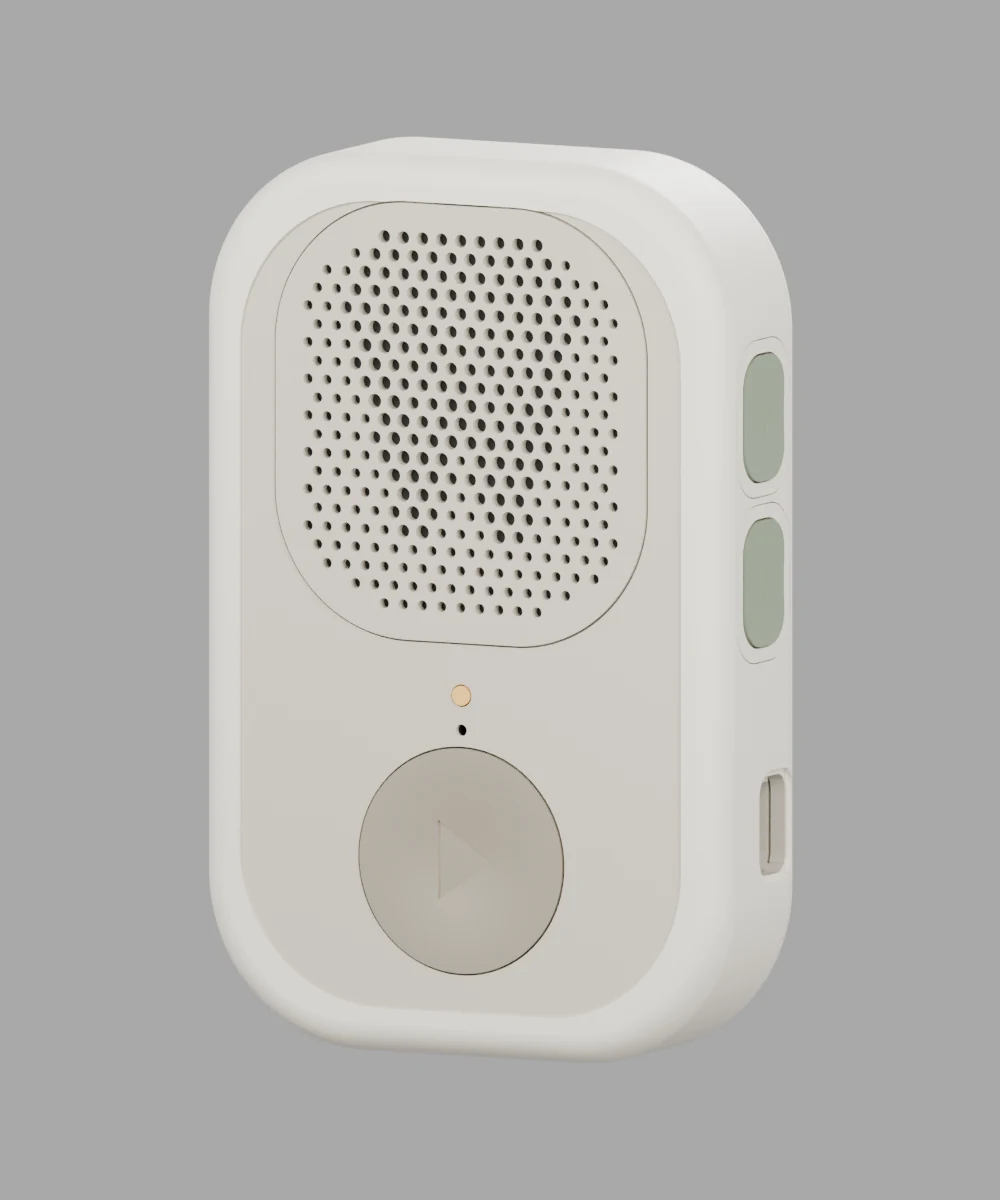

Walkie One 5.2, R8 original finish preview

Bringing the details into focus…

01 / THE COLLECTION

Original5.2

5.2 · R8 source finish.

Drag to discover

R8 engineering · 88 × 136 × 27.2 mm body. Exploded offsets illustrate the assembly. Materials and colours are screen previews.

Original build scope

What to build first

Start with the 27.2 mm baseline and its process coupons. It has 23 rigid printed parts plus separate cast, machined, optical and cut-sheet parts. Use one complete configuration and the matched BOM. The 26.2 mm candidate requires its relocated microphone and thinner seal; physical fit and performance remain to be qualified.

Confirm before the affected stage

Before the first print: Print bore/web, cable-guide and control-stop coupons in the intended material and orientation. Establish compensation, support cleanup, finish buildup, pilot preparation and screw torque.Print supplier / mechanical
Before functional assembly: Measure actual switch contact, force, return and PTT end presses. Qualify USB insertion/cycling and support stiffness; route the full harness without pinching or straining the battery.Mechanical / electrical
Before choosing 26.2 mm: Use the complete slim configuration and qualify the relocated microphone, 0.43 mm installed foam plus 0.14 mm PSA, and the nominal 0.30 mm microphone-to-pouch gap. CAD clearance is not a swelling allowance.Mechanical / battery supplier
Before performance sign-off: Test audio and buzz, microphone sealing, RGB light-guide output, RF, thermal behavior, durability and battery tolerances on a complete first article.Electrical / acoustic / mechanical

Inside the build package / R8

Files for this earlier build.

The handoff explains the build. The part schedule identifies quantities, materials and exact filenames. Check each file’s material and process role. Engineering review files are not a fabrication release.

27.2 mm baseline · CAD, print files, BOM and checks
26.2 mm candidate · CAD, print files, BOM and checks
Native Fusion archives and reopen verification
Process coupons and selectable control stops
Illustrated handoff and rebuild source

Includes the handoff PDF, parts schedule and file manifest. Assembly views show how the represented parts fit together. Follow the handoff’s scope and open-item list before making parts.

Supporting engineering and archive

For individual assembly files, working inspection records or original engineering sources. The two downloads above contain the curated handoff. Original packages include development history and optional studies.

Current source and verification archive

Walkie_One_5_2_R8_Rebuild_Source.zip

ZIP · 33.4 MB

Includes editable sources and supporting evidence. Use the primary download for the current handoff.

File checksum

SHA-256: d0e0a1ad597b9dbe1c6e25ad20668995e82a3523a0b12a888c34bd2a7531249c
