Upcoming prototype / September 19, 2026
Version 28.6
A simpler assembly.
The new Fusion snapshot, with fewer separate CAD bodies, a flat board layout and an open speaker aperture. Explore the model and take the complete handoff into the next prototype review.
Experimental prototype · Fit review open. This publishes the supplied design with traceable exports. Physical qualification remains pending. Golden remains 28.1 / R3.4.
- Width
- 80 mm
- Height
- 150 mm
- Depth
- 24 mm
Bare shell. Rim envelope: 84.2 × 154.2 × 28 mm. Projecting details extend beyond the bare shell.
13 native CAD bodies across 11 supplied STL files. The shell/frame integration and material choices remain part of the prototype review.
Focus the model and use arrow keys to rotate, plus or minus to zoom, and Home to reset. You can also use the view buttons below.
September 19 native Fusion snapshot. Display colours and exploded spacing are illustrative. Hidden hardware/wiring and non-solid PCB sheets are omitted from this viewer; the original Fusion preserves them. Fit review remains open.
Native Fusion geometry. Colours and exploded spacing are illustrative. Historical hidden wiring/hardware and non-solid PCB sheets are omitted from the viewer; original Fusion retains the source content.
28.6 identifies this September 19 snapshot. The original Fusion filename retains 28_1_R3_6. This is a separate supplied design from the earlier 28.4 / R3.6 and 28.5 / R3.7 handoffs. Its 80 mm shell is wider than the preceding 78 mm version.
A quick look inside
45 seconds · Silent visual overview with on-screen explanation.
45-second visual overview
Walkie_One_28_6_Overview.mp4
MP4 · 594 KB
Silent overview with on-screen explanation.
File checksum
SHA-256: 834046a9e8963240e06d0081813db0a43d9bec8ebfd534a5304ad4a83b71afabOverview transcript
Overview_Transcript.md
MD · 1 KB
File checksum
SHA-256: f2c4131827439dffe3cb883fa579d3bf9212267a3b68212b8cc4712e63d6bb51Everything together for the next prototype
Source files, matched derivatives and a clear record of what remains to test.
- Illustrated guide
- Ten pages cover source authority, dimensions, parts, materials, actual CAD views, fit findings and first-article assembly.
- Native-position exports
- 13 individual STEP files and 13 STL alternatives, plus the 13-body review assembly and full reference STEP. Millimetres; import at 100%.
- Original source preserved
- The supplied F3D and 11 original STL files remain unchanged in the complete ZIP. Each derivative maps to its original occurrence and body.
- Build and test records
- Parts/materials, reference-body inventory, hardware and wiring review, assembly notes, open fit register, blank physical qualification log and file checksums.
Illustrated handoff
Walkie_One_28_6_Illustrated_Handoff.pdf
PDF · 3.5 MB
10 pages: source, parts, actual CAD views, open fits and first-article plan.
File checksum
SHA-256: 1681cb72cd9dc248cca060f20146253c3dcabd9913465e7e35212e7502892329Native-position parts ZIP
Walkie_One_28_6_Native_Position_Parts.zip
ZIP · 3.7 MB
13 CAD bodies with individual STEP/STL alternatives. Fit review open; read the guide before ordering.
File checksum
SHA-256: dbb22ebcb544be04baafc8b85e58fe026c48254392b773d68b764832a5c4f136The parts ZIP is for prototype review. The front shell contains two overlapping bodies whose manufacturing intent must be settled. Rigid, flexible and clear material proposals are recorded; no final process recipe, G-code, hardness or finish specification is claimed.
What the fit review found
The simpler direction is accepted. These engineering details remain open.
- Battery, board and play interfaces
- Native solid checks retain battery/rear-shell, board/shell, play-cap and play-switch-seat overlaps. Review these locally before a connected physical closure.
- Frame, acoustic layer and rim
- The two front-shell bodies overlap. The acoustic film needs its trim and placement defined, and the rim needs a specified material and intended compression.
- Wiring and hardware
- 48 hidden solid references remain in the original file. Their current relevance and fit need reconciliation; this flat-board design cannot inherit the connected-fit results from 28.5.
- Editable source health
- Five timeline entries retain missing-reference warnings. Cached geometry opens, but those references need repair and a regeneration check before treating the source as a dependable editable master.
Export reconciliation is complete: five solids in the supplied mesh set were about 5 mm higher in Y than native Fusion. The new exports use native placement without changing shape. All 13 individual STEP files import as valid solids and all 13 STL files are watertight. Static checks do not establish motion, strength or physical qualification.
All Version 28.6 files
One dated set. Original filenames and download checksums remain available.
Complete handoff ZIP
Walkie_One_28_6_Complete_Handoff.zip
ZIP · 36.3 MB
Original source, derived CAD, documents, views, video and engineering evidence.
File checksum
SHA-256: cbae79c73ce0bf76eba884d8c02f751755c17fc40f43d3a8a51cf55b32d5b6baIllustrated handoff
Walkie_One_28_6_Illustrated_Handoff.pdf
PDF · 3.5 MB
10 pages: source, parts, actual CAD views, open fits and first-article plan.
File checksum
SHA-256: 1681cb72cd9dc248cca060f20146253c3dcabd9913465e7e35212e7502892329Native-position parts ZIP
Walkie_One_28_6_Native_Position_Parts.zip
ZIP · 3.7 MB
13 CAD bodies with individual STEP/STL alternatives. Fit review open; read the guide before ordering.
File checksum
SHA-256: dbb22ebcb544be04baafc8b85e58fe026c48254392b773d68b764832a5c4f136Native Fusion, reference STEP and viewer model
The full reference STEP contains 367 visible solids. The 48 hidden hardware/wiring solids remain in original Fusion. Assemblies are for inspection, not slicing; review open fit items before using individual parts.
Original native Fusion
Walkie_One_28_1_R3_6_FULL_REFERENCE_ASSEMBLY.f3d
F3D · 19.8 MB
Unmodified supplied file; five source timeline warnings remain.
File checksum
SHA-256: 3c0f8cd0d7d08f81c888a6bee392be53c71481e05dbd22385f6dd972cd798de3Walkie One 28 6 13 BODY REVIEW ASSEMBLY
Walkie_One_28_6_13_BODY_REVIEW_ASSEMBLY.step
STEP · 1.3 MB
Engineering reference, not for slicing.
File checksum
SHA-256: 0bf4cbb037411f7129e19afb58f6bbc6b573247403351c620223380de3975176Walkie One 28 6 FULL REFERENCE NOT FOR SLICING
Walkie_One_28_6_FULL_REFERENCE_NOT_FOR_SLICING.step
STEP · 25.7 MB
Engineering reference, not for slicing.
File checksum
SHA-256: 74c60400ff1ba3ee6f63eaafdbc5fe881bcd6cde12f56acec8016008cc052fdd3D viewer model
Walkie_One_28_6_Viewer.glb
GLB · 643 KB
Visual derivative; millimetre manufacturing geometry is in STEP/STL.
File checksum
SHA-256: b90dea7d4d61d0c96d9b3160582fccf845d1ed5b0c08d4d72d7b26769115cc6713 individual native-position STL files
01 Play Button
01_Play_Button.stl
STL · 103 KB
File checksum
SHA-256: 961c915c09533cd05a1d2d07eab89a83abd7733c13abca3e90a33d4df074784602 Volume Plus
02_Volume_Plus.stl
STL · 106 KB
File checksum
SHA-256: 8c70b5d1b661b9dea94c69558c8a72f83790f60f5636d5566c8bd97e4dfbf75a03 Volume Minus
03_Volume_Minus.stl
STL · 97 KB
File checksum
SHA-256: 70e157af937257337281f90a4e6130bf8b423599268012b5d25b2da309ea906f04 Talk Grip
04_Talk_Grip.stl
STL · 66 KB
File checksum
SHA-256: 67b07a3c4480f2933ac857469ab86624594d929ae83cad29cb145556dcaac24105 Optical C28 R3 4 L02 Light Guide Fit Proxy
05_Optical_C28_R3_4_L02_Light_Guide_Fit_Proxy.stl
STL · 32 KB
File checksum
SHA-256: 4440c059110323ec55dd257b0de787d8db8ef8cb75e864517907d40de184f39406 Optical C28 R3 4 L02 Light Guide Fit Proxy 1
06_Optical_C28_R3_4_L02_Light_Guide_Fit_Proxy_1.stl
STL · 43 KB
File checksum
SHA-256: db416cfc9ad589193b99884de3377306697c1a44a7fd88729ddbda3cdb96749a07 Rear Shell
07_Rear_Shell.stl
STL · 725 KB
File checksum
SHA-256: 5e1be6b060d686f651874d7f0b02f1fb8d27845469ef4dfe5add224bb228146c08 Front Shell Body1
08_Front_Shell_Body1.stl
STL · 746 KB
File checksum
SHA-256: c5eea10f67f772ef7604bef39d555b2fcbf84f40fdc7a481dd3c60d618946e8d09 Front Shell Body2
09_Front_Shell_Body2.stl
STL · 29 KB
File checksum
SHA-256: cdd5eacf8f995f7b2b622bd859de3e793e9f9feb5988e1e68c7d3a10cf578a1910 Play Switch Base
10_Play_Switch_Base.stl
STL · 48 KB
File checksum
SHA-256: 3728dfa623ca971e0ed0f028dff6d35c9f908f7d1c550f2aa32d9bdb759e850011 LED Housing
11_LED_Housing.stl
STL · 88 KB
File checksum
SHA-256: 22dbb5b96386efb4686c72ae85b332fe2b224d676f75a45daf45e25041814b1712 Speaker Frame
12_Speaker_Frame.stl
STL · 28 KB
File checksum
SHA-256: 93c19740232cf67c1659ed06af8030535b5cb00b62cf0ce606b39a57da83a3f513 Rim
13_Rim.stl
STL · 389 KB
File checksum
SHA-256: 28c4de06c2c77efc78cfe4d5a60c58065edb5ca879ac58135c37c0dc404331e713 individual STEP alternatives
01 Play Button
01_Play_Button.step
STEP · 70 KB
File checksum
SHA-256: 35816f7c5d1ce5ff81fba1c89c97769fe11f8d2a3b8a05f78794e0ac26b75fcb02 Volume Plus
02_Volume_Plus.step
STEP · 71 KB
File checksum
SHA-256: 54e963e3e3ef9760067c49d68ac63f673260649b774b77bbdba0378ae8db3f3103 Volume Minus
03_Volume_Minus.step
STEP · 55 KB
File checksum
SHA-256: c4d733c97820719b910af178c93f609707c6a81f38a2ff00d3f0df9614e5c48c04 Talk Grip
04_Talk_Grip.step
STEP · 54 KB
File checksum
SHA-256: eaadb2369e5fd41ceb6c13354e1c9f8478d6ed7f044b0969ec6a8dcf093d6f7105 Optical C28 R3 4 L02 Light Guide Fit Proxy
05_Optical_C28_R3_4_L02_Light_Guide_Fit_Proxy.step
STEP · 11 KB
File checksum
SHA-256: 327205d447b4d0d26b1f359a11ae10a858c54396e06b49d07606dfab3952652406 Optical C28 R3 4 L02 Light Guide Fit Proxy 1
06_Optical_C28_R3_4_L02_Light_Guide_Fit_Proxy_1.step
STEP · 9 KB
File checksum
SHA-256: f92530488ac81662a9272350ae68deb1b8bd1174db4f90f000d1c015b31c70f107 Rear Shell
07_Rear_Shell.step
STEP · 428 KB
File checksum
SHA-256: 4e0f34f8b710da1f254d8aae58cb5f0e2adee2a2284e2487d1a24b807969ce4108 Front Shell Body1
08_Front_Shell_Body1.step
STEP · 285 KB
File checksum
SHA-256: e22a1e2958eb77eed1efb631c25b34978b09d69cbaa46b17385d2b9e4a7a75eb09 Front Shell Body2
09_Front_Shell_Body2.step
STEP · 24 KB
File checksum
SHA-256: fc9c1077b04912bb733881cb7e7b82e94903af1ea1022990f0e636deef50b53c10 Play Switch Base
10_Play_Switch_Base.step
STEP · 36 KB
File checksum
SHA-256: 068a07dd832c4710ff00fc0a46f1b8302a325637366104f9e047a8af0c7f479b11 LED Housing
11_LED_Housing.step
STEP · 46 KB
File checksum
SHA-256: 49cece620b268affcd7455e4dca007e216d46d9fa0929fc2c14f1e36a2a1242712 Speaker Frame
12_Speaker_Frame.step
STEP · 24 KB
File checksum
SHA-256: bf748b925a7c3516440fdd4c2bcac2d6543444f3ad90591023ed99abd58bbb5613 Rim
13_Rim.step
STEP · 183 KB
File checksum
SHA-256: 6e77528deacc0d11f46fde09721a07bb2a815e4d941ee22a76e3e0e945f0b96dParts, materials, assembly, wiring and test documents
00 Start Here
00_Start_Here.md
MD · 2 KB
File checksum
SHA-256: 15ca67ab992399e33ce43d4028b28b9b0ec7653568dcb116234bcc134726020401 Assembly and Process
01_Assembly_and_Process.md
MD · 2 KB
File checksum
SHA-256: 626d661dfcc3603ce4ecc533cef46ef0912359d7df8b6bb8e9a17f5fce5da5f602 Hardware Wiring and Finish
02_Hardware_Wiring_and_Finish.md
MD · 2 KB
File checksum
SHA-256: edad9f1670e5b897258e0fadd3e738dfb8f2aad5cd7527c13f58d5c3da7fdb4103 Native Review
03_Native_Review.md
MD · 7 KB
File checksum
SHA-256: e07f1c5c2412cd2f3b1fcf4320377424d617bd9867e1fe991782734bbb011838Open Fit Register
Open_Fit_Register.csv
CSV · 1 KB
File checksum
SHA-256: 46f1c4a0da8004781ca4c92e4e95b08d0db5a7bcf4039bf3e6c4ef054828a6fdParts and Materials
Parts_and_Materials.csv
CSV · 4 KB
File checksum
SHA-256: 728509f7158430c430e4a582dad471ed6bc5301cd359ec4d99aa8d5299df22e3Physical Qualification Log
Physical_Qualification_Log.csv
CSV · 1 KB
File checksum
SHA-256: 5b40fe7f6ccea2f787e4ef50e6f70a8318a9e8406470c87285b17c4f534d0e82Reference Body Inventory
Reference_Body_Inventory.csv
CSV · 426 KB
File checksum
SHA-256: fcd48046f5d28f39f27aa338e5500de0930aeba631f77bbdf3435bfe86189a96Package checksums
SHA256SUMS.txt
TXT · 7 KB
File checksum
SHA-256: b1bee3ae5c1dd347f8e3ea6f4d5adc6e5cc496579e273428c478af1b6801dfffNative checks and export evidence

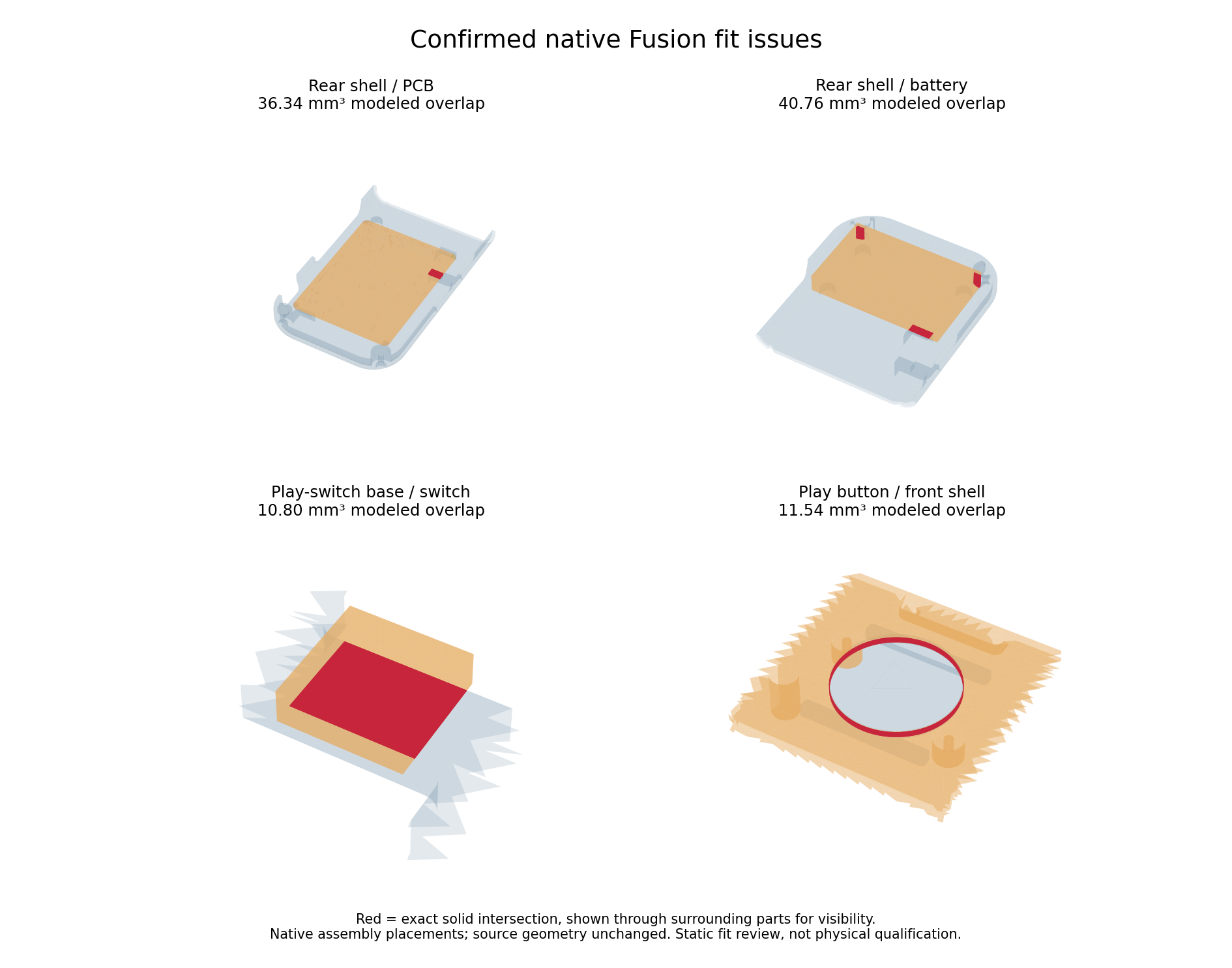

confirmed native intersections
PNG · 425 KB
File checksum
SHA-256: 7325da3aa80ef896854a18e510cab0790267339a3c58b5c2ad41f84f8c5425e4
inventory
inventory.json
JSON · 1.7 MB
File checksum
SHA-256: f7ed85001d147ed12514a2e1696bf4f8743cc09f036742dd755a85dbdefa8965solid checks
solid_checks.json
JSON · 14 KB
File checksum
SHA-256: 771ce795451d05d80b07e7d20e1ff76b66ae80121fb5f5a98017dc0e979e8f2asolid checks including hidden
solid_checks_including_hidden.json
JSON · 18 KB
File checksum
SHA-256: de450fa8fdae4149f46543e8364f8d82bd47fda204f4010af65dcda3c0ed6dc1export validation
export_validation.json
JSON · 8 KB
File checksum
SHA-256: 640fc8737192f4a513c8c239b6ccbb01b5598c74edede9bc315cd0abce5520canative export manifest
native_export_manifest.json
JSON · 5 KB
File checksum
SHA-256: 3c97f6cbcd9f703c7b5f3380dfe5fc63272eb3838c1edc0eb8567a9bea378173Resolve fit → Assemble → Test
The next step is a measured first article
Settle the open geometry and material decisions, reconcile the real hardware and connections, then record the physical build. The case must seat by hand without loading the battery, bowing the board or pinching wires.
The log includes dimensional checks, control travel, USB access, 10 proposed service cycles and 1,000 proposed actuations per control, followed by electrical, acoustic, optical and RF checks. No physical test pass is claimed.
Current Golden version 28.1
