Concept 26 / Elian original

Quiet Orb — Bauhaus LA

v12.3Earlier version

Device dimensions

Enclosure body · CAD v12.3

Width: 78 millimeters
Height: 150 millimeters
Depth: 24 millimeters

Overall with controls: 82.72 × 150 × 24.55 mm, measured from the supplied v12.3 STL bounds. Battery and PCB occupy separate plan regions; physical finish allowance is not included.

A slimmer 78 × 150 × 24 mm no-stack enclosure with a printable 121-hole halftone W grille. The v12.3 handoff includes eight device parts, a tolerance coupon, editable CAD, assembly guidance and source audit records.

Read handoff · PDF Download engineering files · 33.8 MB

4-page overview with technical appendices. The ZIP includes the same PDF and matching files.

Materials and process

Supplied v12.3 shop guidance: warm light grey satin shells, red PTT, blue action cap, yellow volume caps and a neutral frosted lens. FDM after coupon validation, tough SLA/DLP resin, or MJF/SLS PA12 are proposed prototype routes. Confirm material, process and physical colour samples with the supplier.

Customise this design in 3D

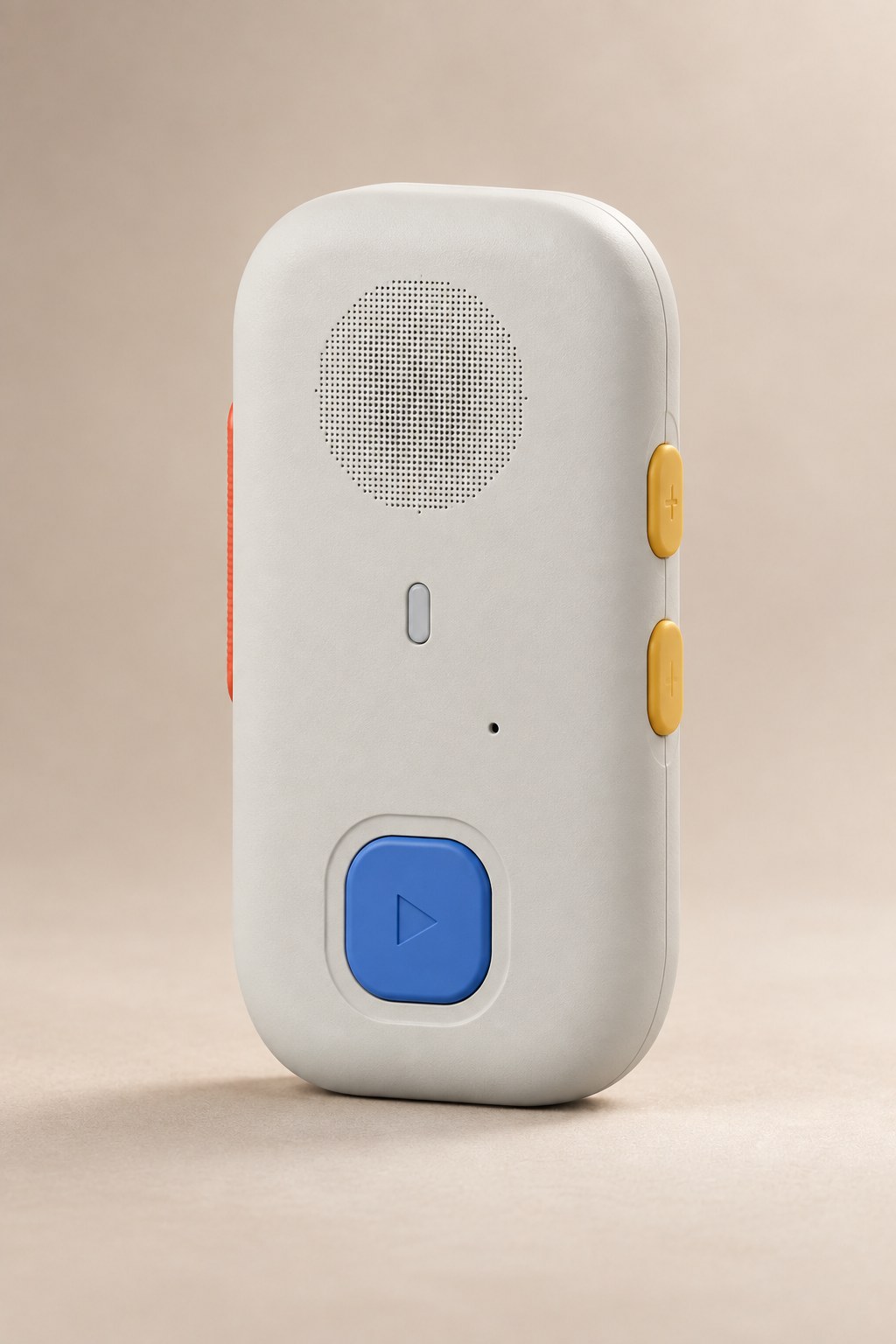

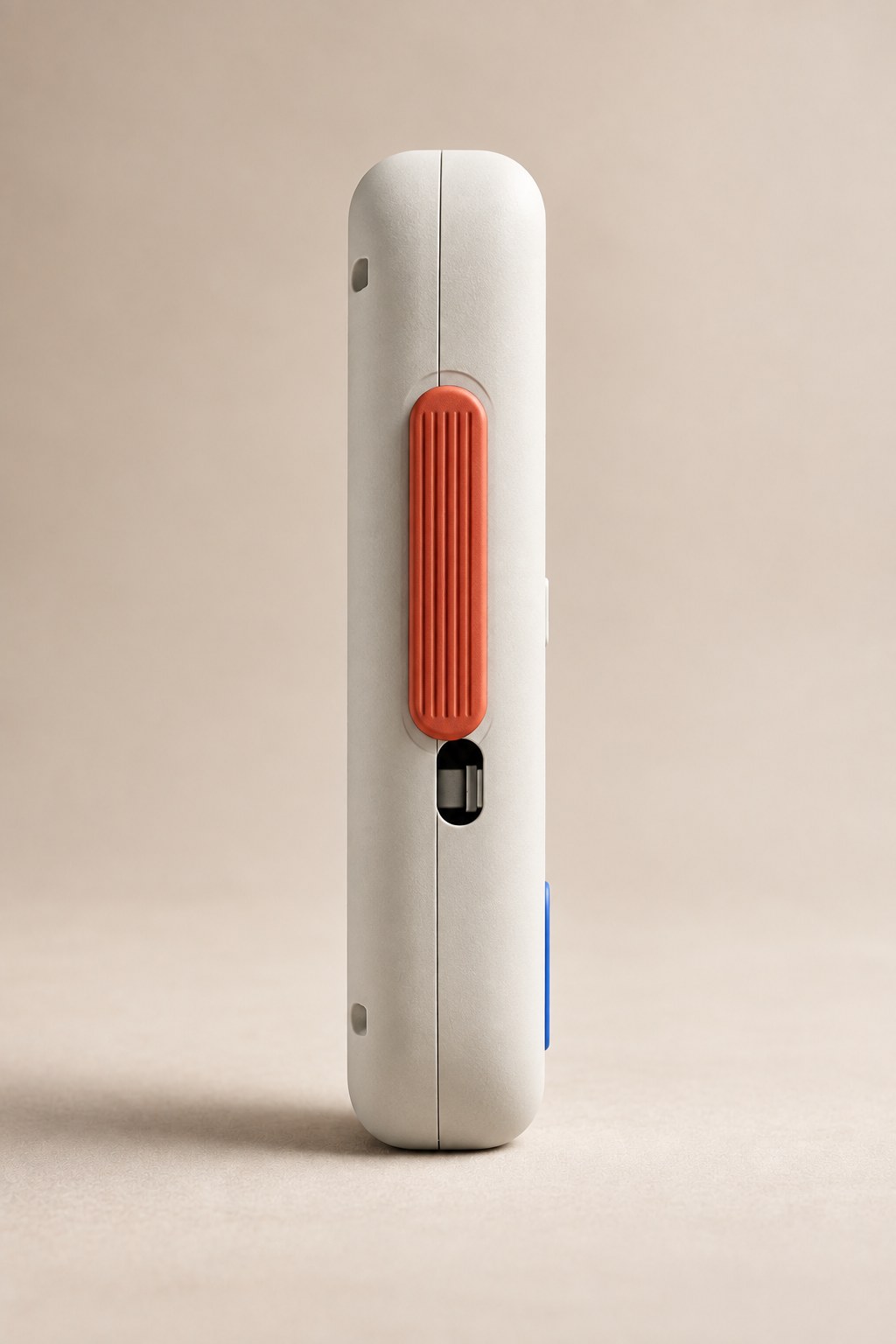

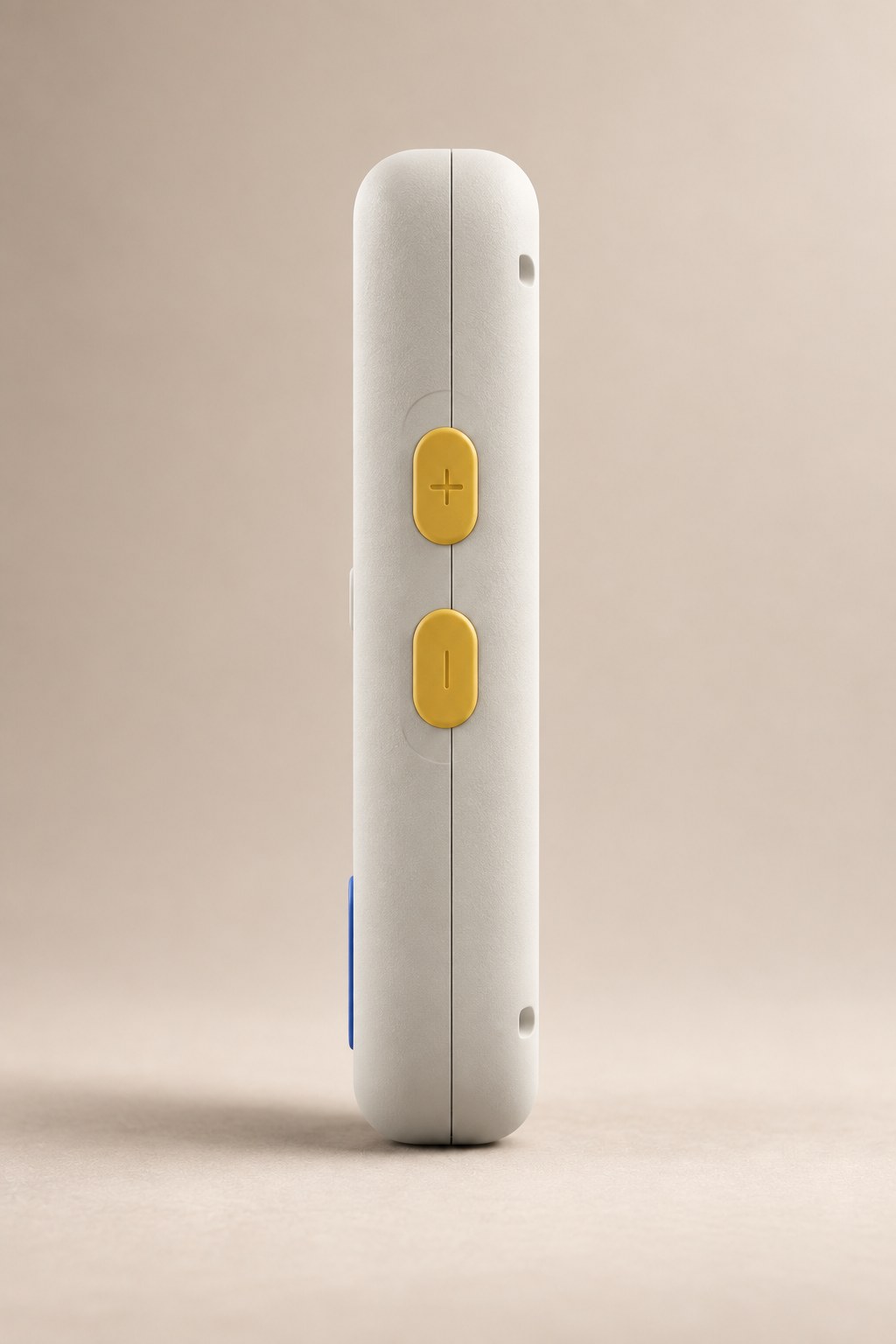

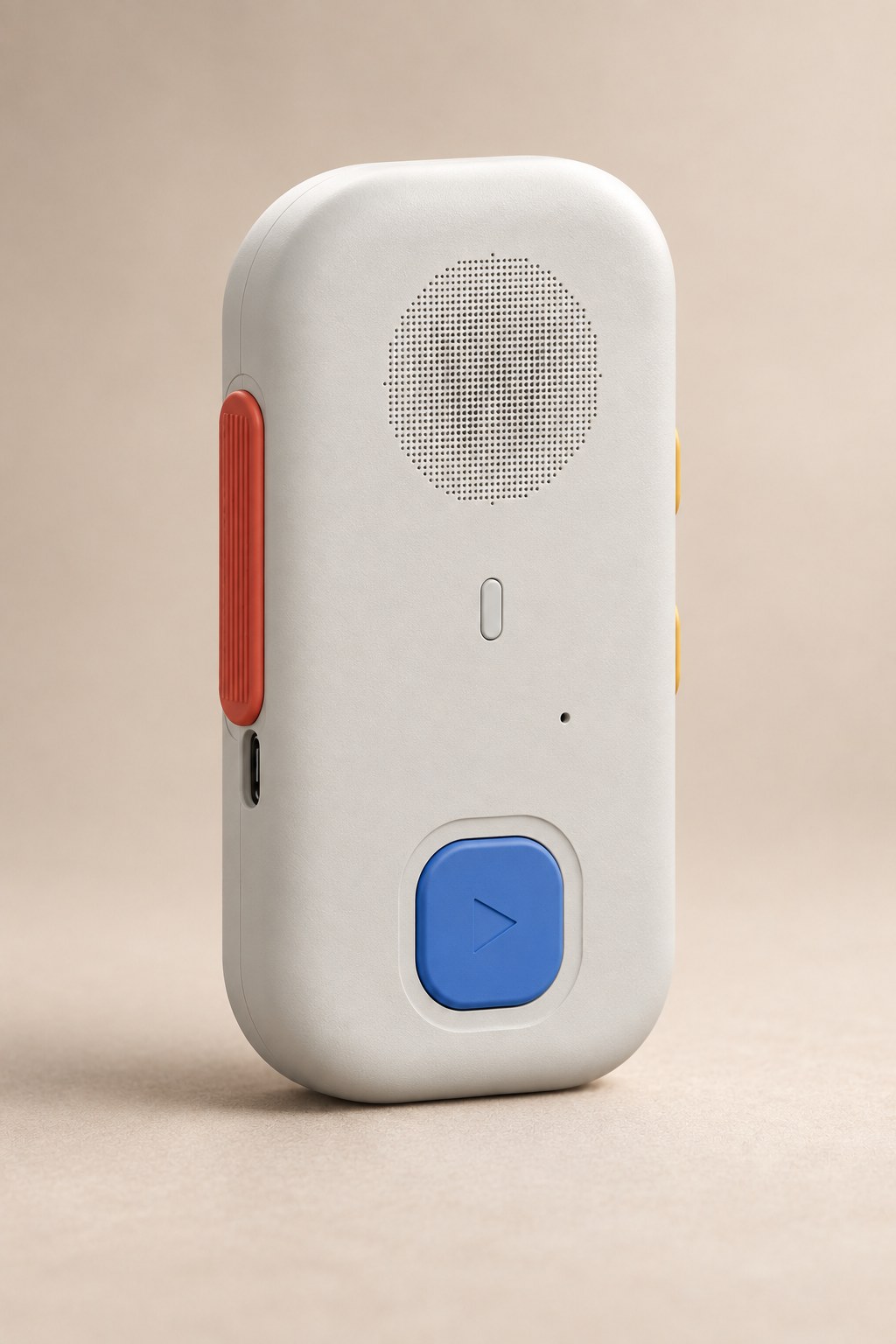

Quiet Orb — Bauhaus LA inspiration, view 1 of 6

1/6

Front · Drag, use the arrow keys, or choose an angle.

AI-generated product inspiration based on Elian’s design. See CAD for the modeled geometry.

Material lab 26

A closer look. A finish that’s yours.

THE MATERIAL EDITEngineering v12.3

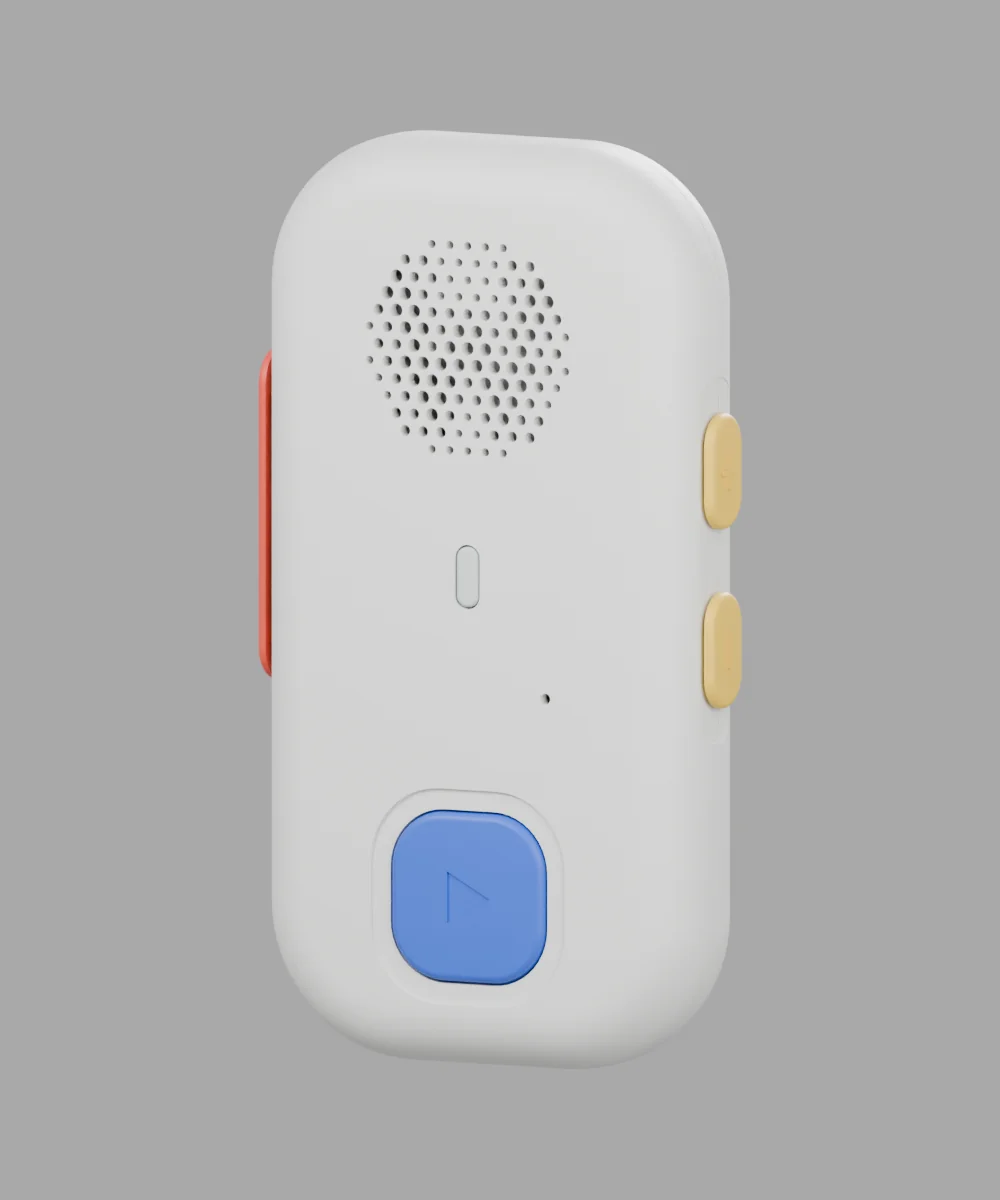

Walkie One 26, v12.3 original finish preview

Bringing the details into focus…

01 / THE COLLECTION

Original26

26 · v12.3 source finish.

Drag to discover

v12.3 engineering · 78 × 150 × 24 mm enclosure body. Exploded offsets illustrate the assembly. Materials and colours are screen previews.

Original build scope

What to build first

Print the tolerance coupon in the intended process, then the eight device pieces. Use the supplied assembly guide and complete first-article fit, USB, controls, acoustic and battery checks before functional sign-off.

Confirm before the affected stage

Before device printing: Print coupon in intended process; confirm 1.4 / 1.8 / 2.2 mm holes, 1.0 mm web, lens fit, guides and flex ribs.Print supplier
Before assembly: Confirm four enclosure screws and two M2 clamp locations: thread, length, retention method, engagement and tightening torque.Mechanical / supplier
First article: Verify all four buttons return, actuate before hard stops and retain switches under repeated loading.Mechanical / electrical
First article: Check actual USB-C cable overmould, full seating, insertion force and repeated cycles against the 0.20 mm bridge clearance.Mechanical / electrical
First article: Route real flexible leads and coax through the channel and six tabs; check closure, seam clearance and nonabrasive battery support.Mechanical / electrical
Before functional sign-off: Qualify speaker output, frequency response, buzz, microphone seals, LED optics and antenna performance.Electrical / acoustic
Before release: Qualify material, finish, battery integration, tolerance stack and structural performance on physical samples.Engineering / supplier

Inside the build package / v12.3

Files for this earlier build.

The handoff explains the build. The part schedule identifies quantities, materials and exact filenames. Check each file’s material and process role. Engineering review files are not a fabrication release.

00 Documents
01 CAD
02 Print Parts
03 Component References
04 Artwork
05 Source Audits
06 Views
07 Verification
08 Editable Source

Includes the handoff PDF, parts schedule and file manifest. Assembly views show how the represented parts fit together. Follow the handoff’s scope and open-item list before making parts.

Supporting engineering and archive

For individual assembly files, working inspection records or original engineering sources. The two downloads above contain the curated handoff. Original packages include development history and optional studies.

Current source and verification archive

Walkie_Talkie_NoStack_v12_3_Printable_Halftone_W_Shop_Package.zip

ZIP · 26.8 MB

Includes editable sources and supporting evidence. Use the primary download for the current handoff.

File checksum

SHA-256: 9013900e9cdf75894223f1e5ef19728d170c84c49065cd07093d9730c0f5b5de
