Concept 21.2A / Lozenge
Camera Grip
Device dimensions
mmGrip · CAD E1
- Width
- 90.4 millimeters
- Height
- 152.4 millimeters
- Depth
- 28.8 millimeters
Controls extend beyond the grip width shown. Maximum finished depth: 30 mm.
The long PTT paddle now drives one central Omron B3F3150. Revised carrier, pusher and guides replace the previous two-switch PTT arrangement. This is a partial engineering revision; the handoff identifies remaining work.
4-page overview with technical appendices. The ZIP includes the same PDF and matching files.
Materials and process
Proposed SLS PA12 structure, separate 1.2 mm cast elastomer skins, 0.8 mm stainless grille, rigid caps, clear lens, silicone pads and FR4 mechanical carriers. ReoFlex 50 PU is a trial candidate; 55 Shore A is design intent with 45-60 A samples. Rapid must confirm formulation, grip bonds, grille process and finish. MJF is not assumed.
Front · Drag, use the arrow keys, or choose an angle.

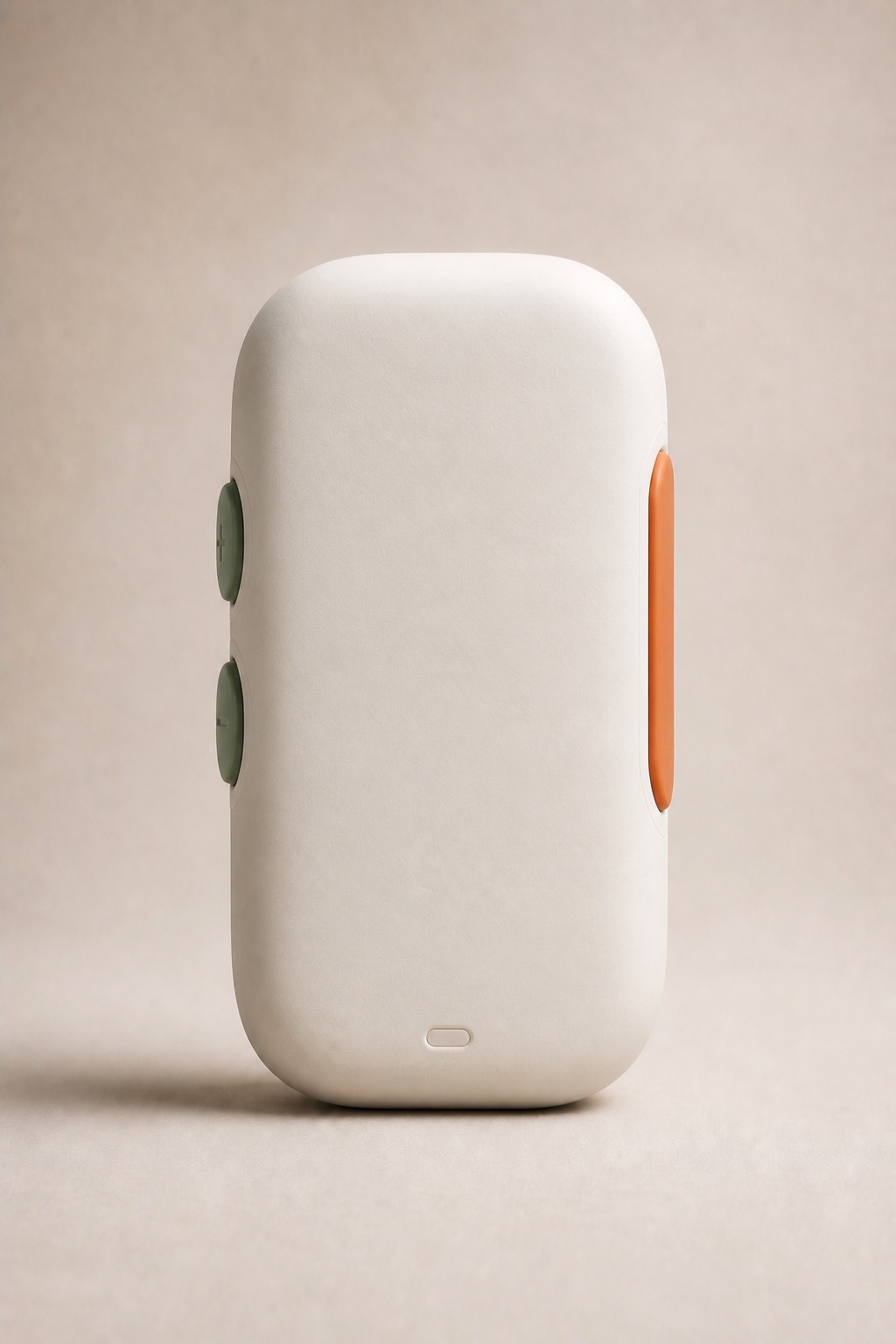

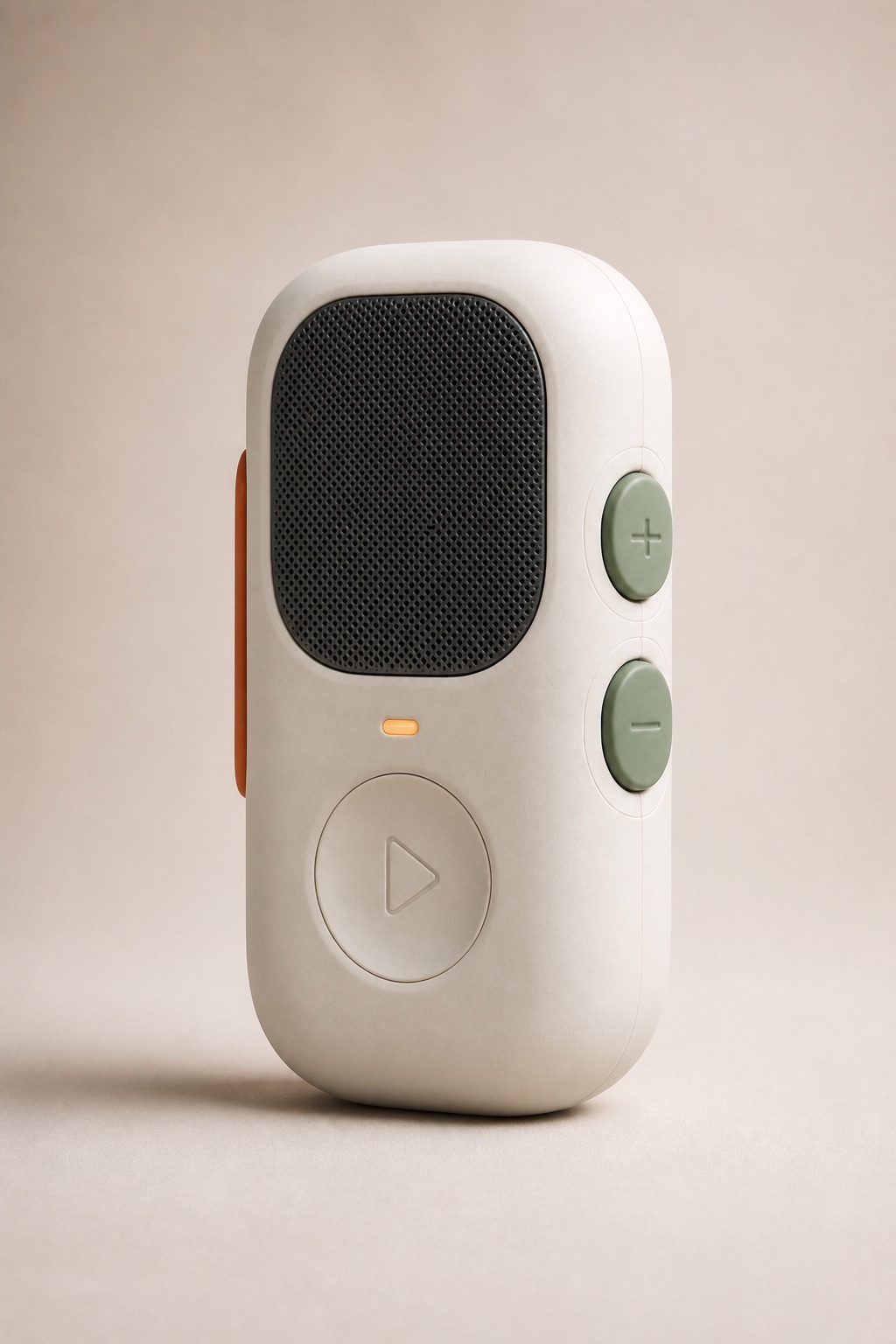

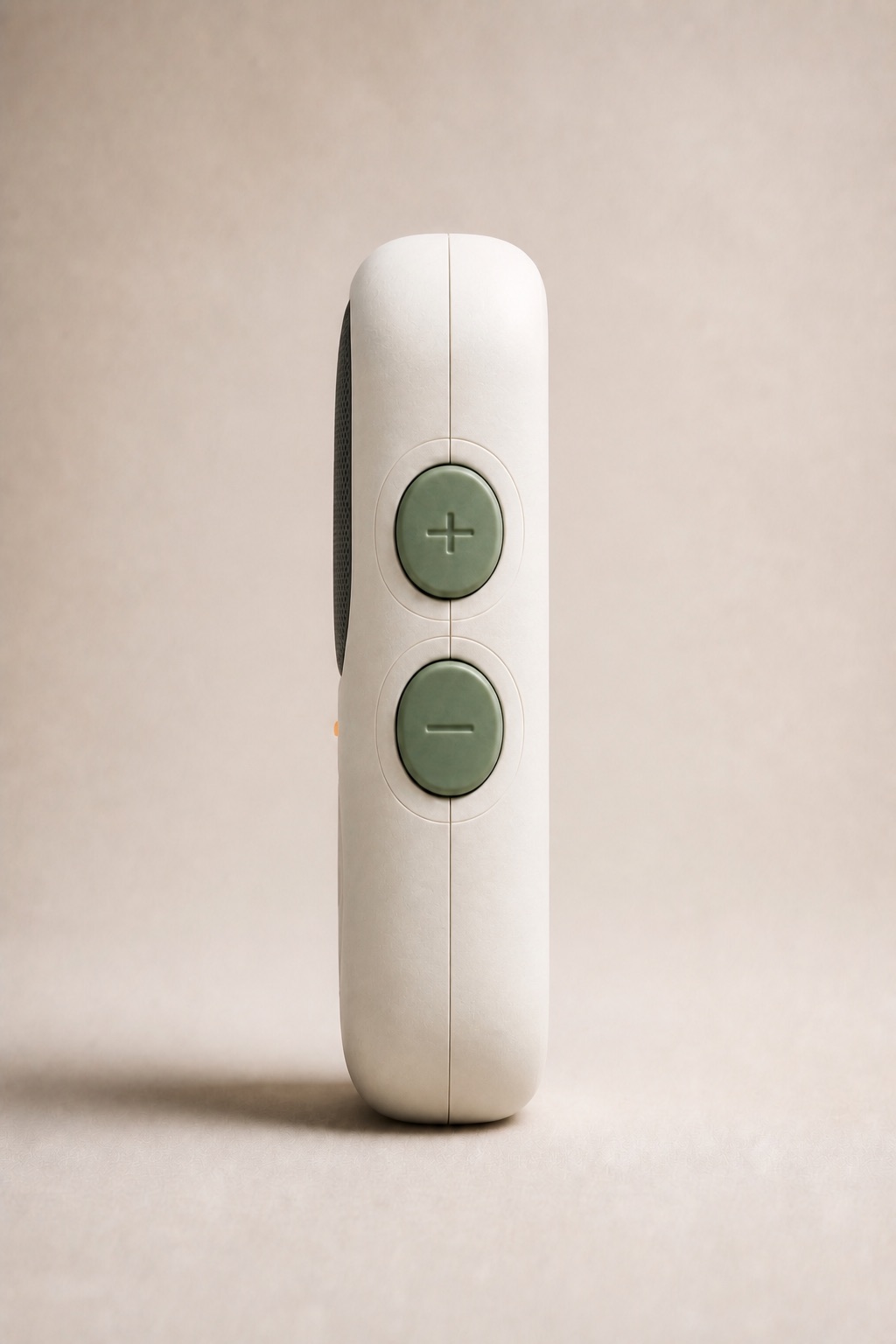

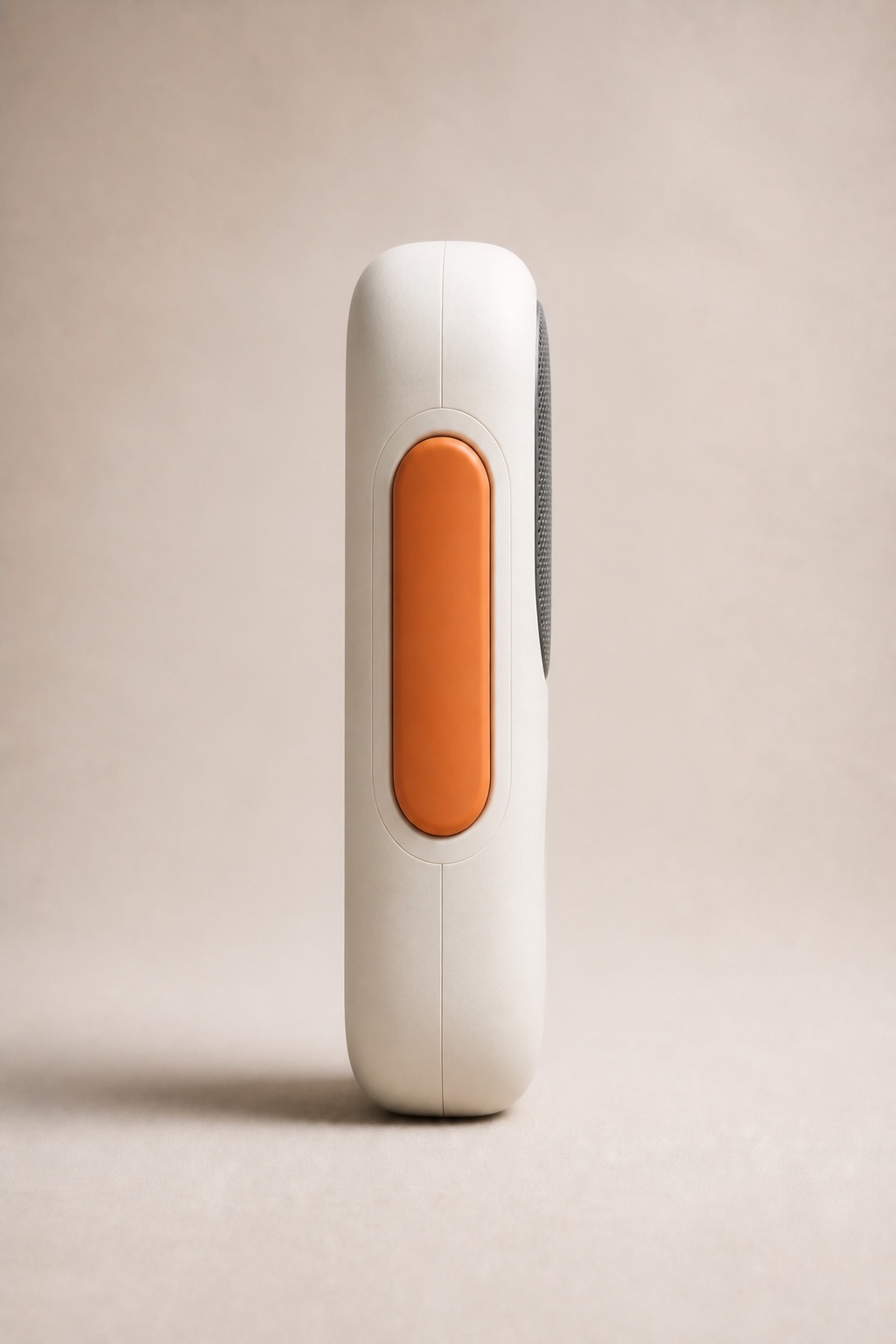

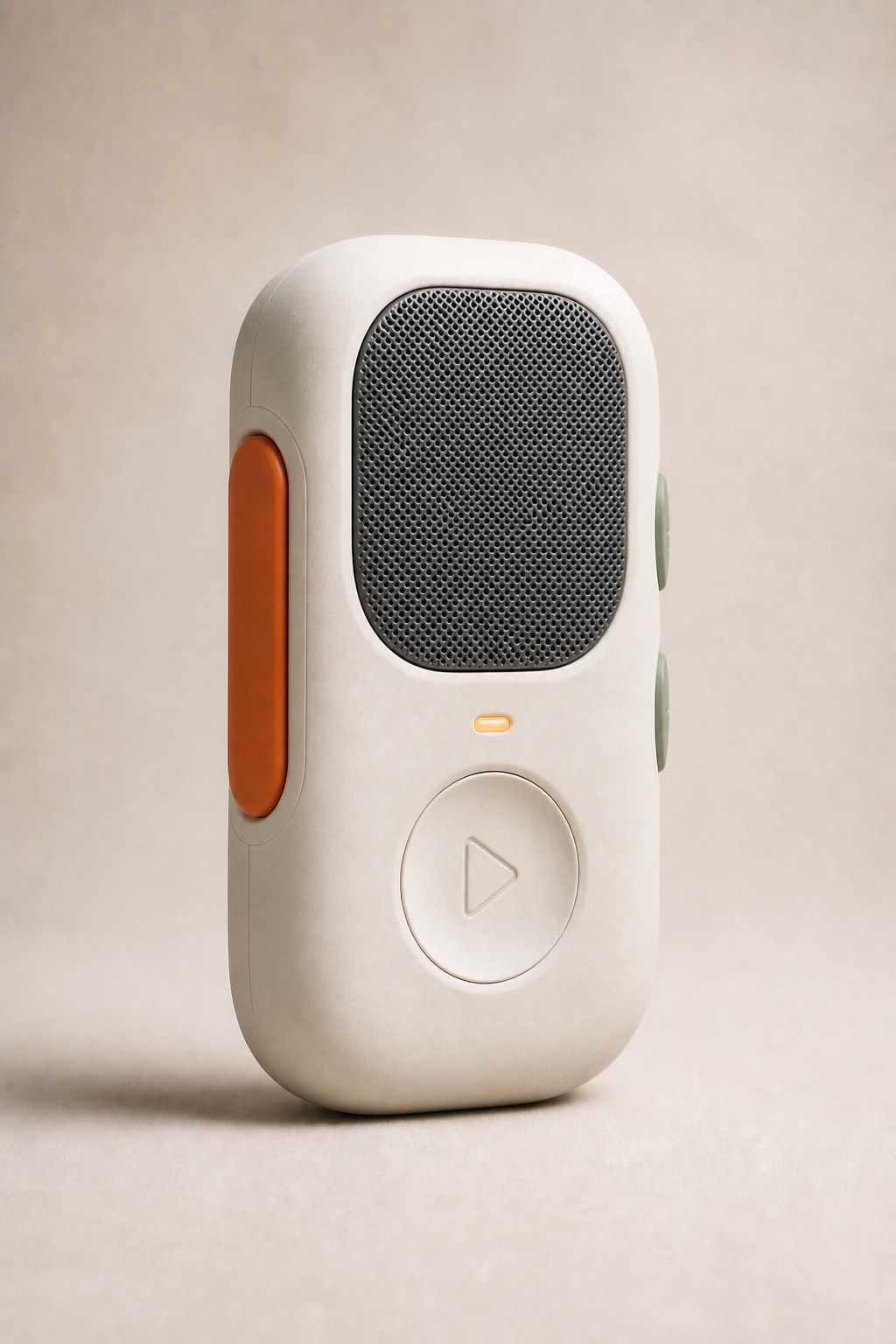

Design inspiration. See CAD for the modeled geometry.
Material lab 21.2A
A closer look. A finish that’s yours.
Original21.2A
21.2A · E1 source finish.

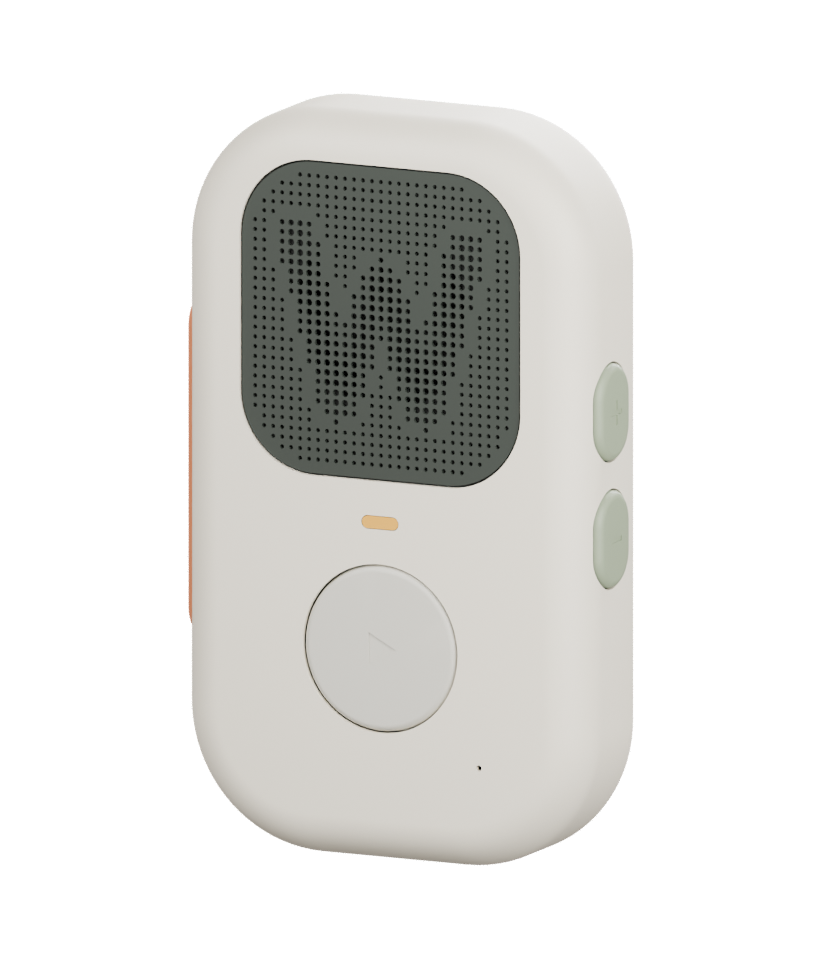

E1 engineering · 90.4 × 152.4 × 28.8 mm grip. Exploded offsets illustrate the assembly. Materials and colours are screen previews.
Original build scope
What to build first
Review the current E1 geometry and listed unresolved interfaces. No complete print kit is released by this revision.
Confirm before the affected stage
- Before functional build 1
- Long-paddle rocking, end-press equalization or a stabilizer, switch force and return are not validated.Mechanical / electrical / supplier
- Before functional build 2
- Complete populated/mated electronics, plugs, harness and cable routes remain open.Mechanical / electrical / supplier
- Before functional build 3
- Remaining component retention, tolerance, material and full assembly checks are still required.Mechanical / electrical / supplier
- Before functional build 4
- Physical button, optical, acoustic, RF, thermal and durability qualification remains open.Mechanical / electrical / supplier
Inside the build package / E1
Files for this earlier build.
The handoff explains the build. The part schedule identifies quantities, materials and exact filenames. Check each file’s material and process role. Engineering review files are not a fabrication release.
- 04 Drawings
- 05 Editable Source
- 03 Verification
- 01 Current CAD
- 00 Documents
Includes the handoff PDF, parts schedule and file manifest. Assembly views show how the represented parts fit together. Follow the handoff’s scope and open-item list before making parts.
Supporting engineering and archive
For individual assembly files, working inspection records or original engineering sources. The two downloads above contain the curated handoff. Original packages include development history and optional studies.
