Concept 20.2 / Lozenge
Mechanical Typewriter
Device dimensions
mmBody · CAD R8 Astra
- Width
- 88 millimeters
- Height
- 136 millimeters
- Depth
- 27.2 millimeters
Depth including LED dome: 28.5 mm.
Cast urethane and woven front with metal trim and serviceable, calibrated controls.
4-page overview with technical appendices. The ZIP includes the same PDF and matching files.
Materials and process
SLS nylon structure, cast polyurethane skins (40 ±5 Shore A), woven acoustic cloth (fiber chemistry to confirm), 6061-T6 aluminum play key and trim, rigid polymer side keys and silicone foam seals. Supplier grades, adhesive compatibility and physical qualification remain open.
Front · Drag, use the arrow keys, or choose an angle.

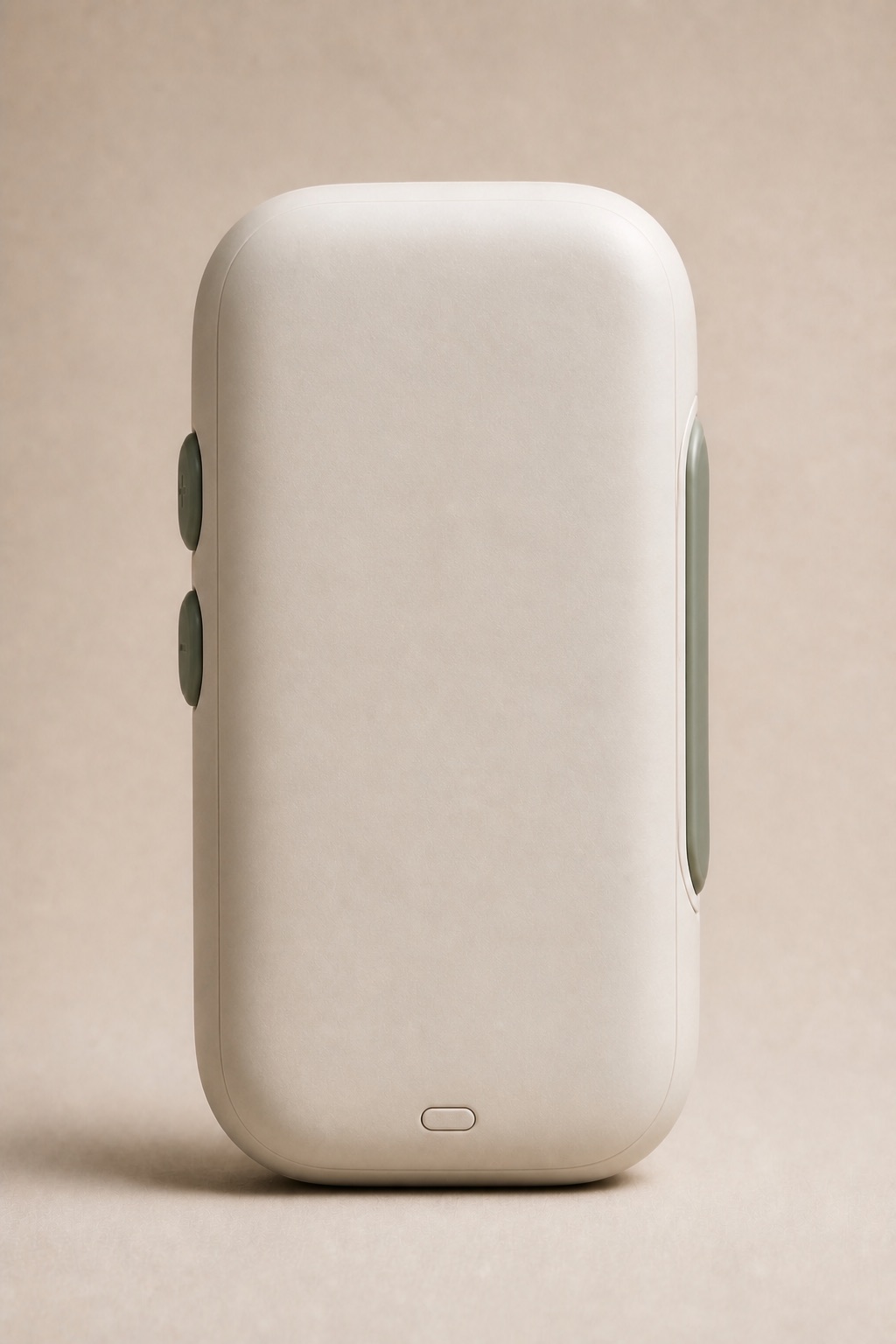

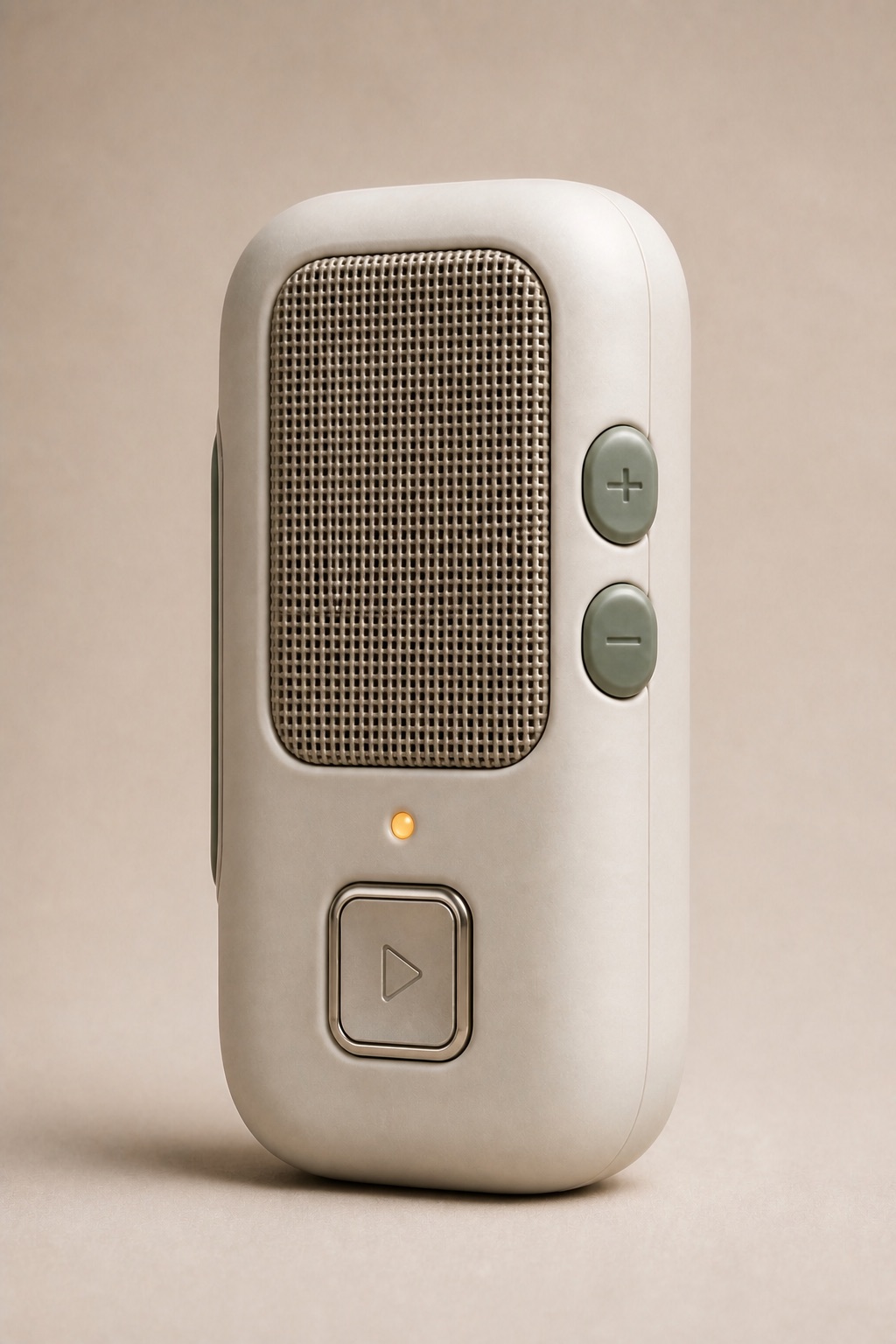

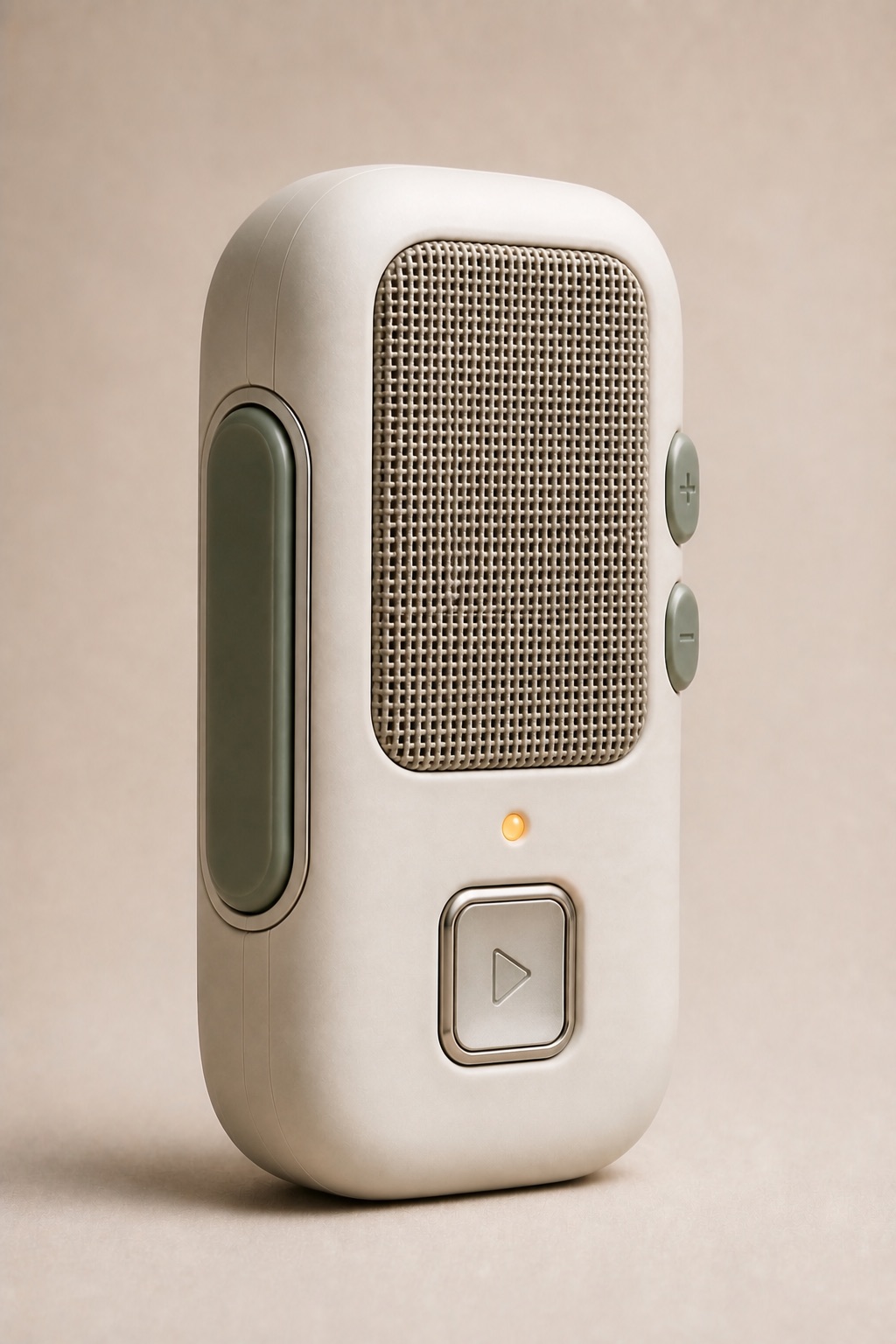

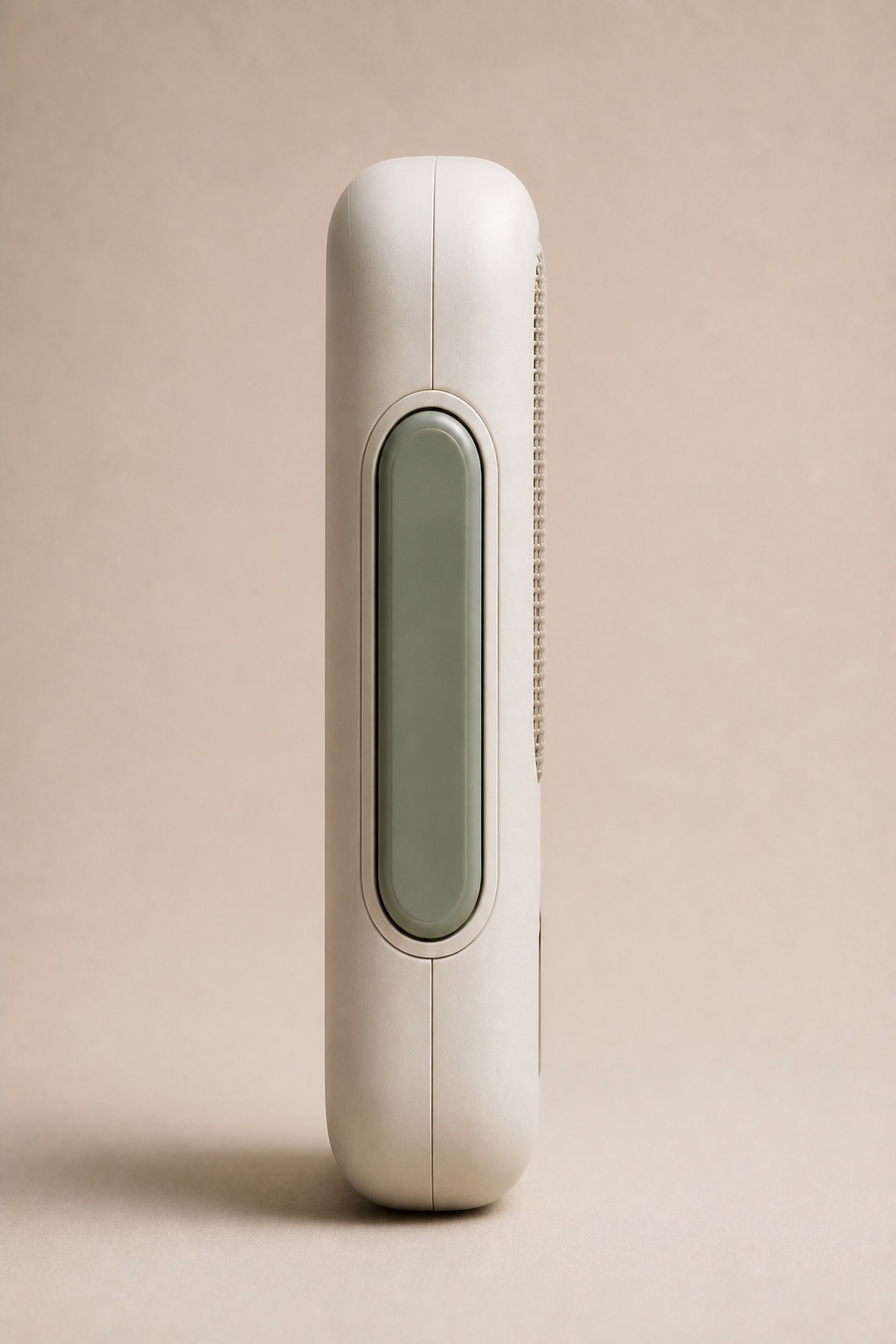

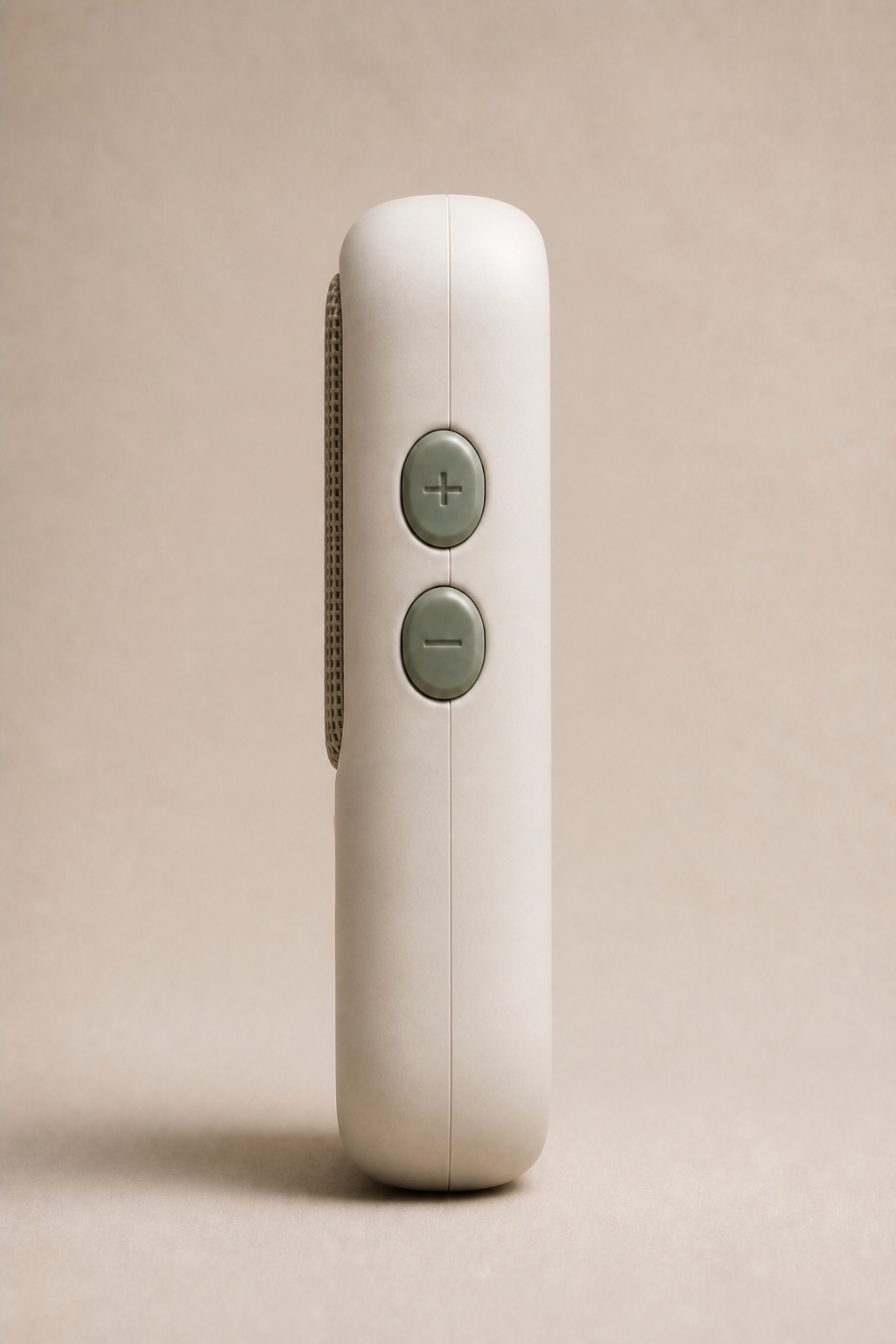

Design inspiration. See CAD for the modeled geometry.
Material lab 20.2
A closer look. A finish that’s yours.
Original20.2

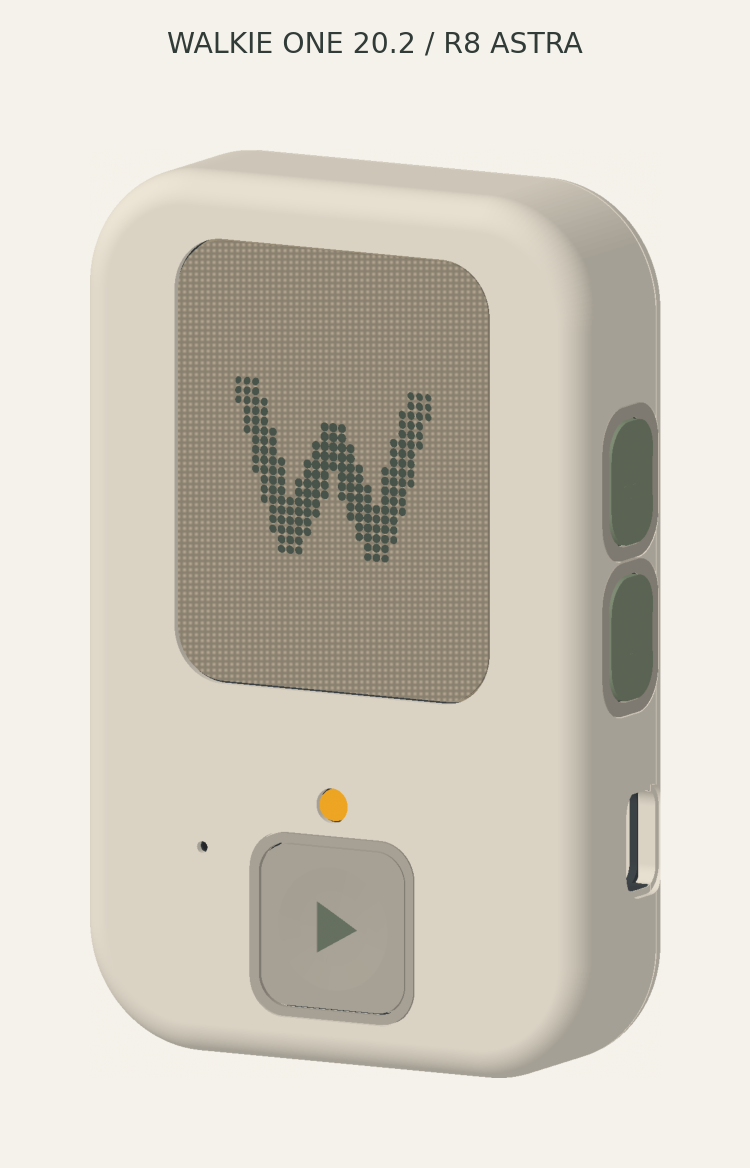

20.2 · R8 Astra source finish.
R8 Astra engineering · 88 × 136 × 27.2 mm body. Exploded offsets illustrate the assembly. Materials and colours are screen previews.
Original build scope
What to build first
C01 volume, C02 full PTT and C03 front mechanism fixtures; C04/C05 rear lettering/bond comparison and C06 cloth sample. Then one full unpowered fit enclosure. Defer cosmetic tooling/metal trim commitment until the antenna layout is reviewed.
Confirm before the affected stage
- Before mechanism acceptance
- Fixture results, spring lot/force data, machined datum capability, thread tests and measured end-press behavior.Rapid with Walkie One mechanical
- Before full finish
- Skin casting/bond map, rear fill, cloth grade/W process and matched metal/skin samples.Rapid proposes; Walkie One design approves
- Before cosmetic tooling or powered build
- Actual conductor map, antenna placement/clearance, mated connector/coax and harness. The retained antenna location is a packaging reference, not RF approval.Walkie One electrical/RF
Inside the build package / R8 Astra
Files for this earlier build.
The handoff explains the build. The part schedule identifies quantities, materials and exact filenames. Check each file’s material and process role. Engineering review files are not a fabrication release.
- Parts to print
- Other manufacturing
- Assembly and records
- Required fit checks
Includes the handoff PDF, parts schedule and file manifest. Assembly views show how the represented parts fit together. Follow the handoff’s scope and open-item list before making parts.
Supporting engineering and archive
For individual assembly files, working inspection records or original engineering sources. The two downloads above contain the curated handoff. Original packages include development history and optional studies.
Original engineering archive
Walkie_One_20_2_R8_Astra_Supplier_Package.zip
ZIP · 138.7 MB
Includes editable sources and supporting evidence. Use the primary download for the current handoff.
File checksum
SHA-256: 3665dc31cb3d2579064d9167028e8ae5f9384f1b4418223419487b617a1b704aIndividual assemblies and working records
Case assembly
Walkie_One_20_2_R8_Astra_CASE_ONLY.step
STEP · 47.2 MB
File checksum
SHA-256: 39d49ceadfe2343ed71e267574a7d6c7b8df0aba9d3f7dd5263fb7965d5fcc7dBill of materials
BOM_R8.csv
CSV · 17 KB
File checksum
SHA-256: e30d5109cf553e98876779da220257f4de9a901fb75be89a961ce31a4d48f9d1Qualification Traveler
Qualification_Traveler.csv
CSV · 6 KB
File checksum
SHA-256: fa04635f69227ab4fab630957abf3d820b476984f03a70685f1fbb0c4edef2f6Assembly with supplied hardware references
Walkie_One_20_2_R8_Astra_CASE_AND_PCB.step
STEP · 149.1 MB
File checksum
SHA-256: ac5b314a887eba0060f4bc90ab0353db3ab91a8cbaa38da1d03482ce6b4b6987Appearance assembly
Walkie_One_20_2_R8_Astra_CASE_WITH_ARTWORK.step
STEP · 90.1 MB
File checksum
SHA-256: ae9e2f7f4c4739f2f054a41171372d957ac740ba9cfe1176e4a70b05a54b6b1fInputs and decisions to confirm
Rapid_Open_Items.csv
CSV · 1 KB
File checksum
SHA-256: 54114276c3e14e4b168c0af1f5aef3b48e7a8edc4e9b80482288b393e7c61d8eRemovable stop and cassette architecture with a digitally screened installation sequence, revised calibration and lettering/bond coupons. The flush optical option is separate. Physical assembly, switch loading, finish and RF qualification remain open.
Source: Astra · R8 Astra. CAD and qualification status are documented in the handoff.
Optional visual references · Films
Films illustrate appearance and assembly. Their source revisions are shown below; use the current CAD for fabrication.
R7 Astra · Earlier R7 Astra footage; not a demonstration of current R8 Astra CAD.
R7 Astra · Earlier R7 Astra footage; not a demonstration of current R8 Astra CAD.
R7 Astra · Earlier R7 Astra footage; not a demonstration of current R8 Astra CAD.
R7 Astra · Earlier R7 Astra footage; not a demonstration of current R8 Astra CAD.
R7 Astra · Earlier R7 Astra footage; not a demonstration of current R8 Astra CAD.
R7 Astra · Earlier R7 Astra footage; not a demonstration of current R8 Astra CAD.
Earlier R7 Astra · Cinematic films · 16 exports
Walkie_One_Concept_20.2_R7_Astra_All_Final_Films.zip
ZIP · 87.9 MB
Earlier concept films; these do not show the current R8 Astra engineering changes.
File checksum
SHA-256: e309cc6bf799a448aec2c1bb24ba44201e750c163d31f4574794ac6ca544d776Earlier R7 Astra · Launch and studio films · 6 exports
Walkie_One_Concept_20.2_R7_Launch_and_Studio_Films.zip
ZIP · 94.3 MB
Earlier concept films; these do not show the current R8 Astra engineering changes.
File checksum
SHA-256: 8d00fea6743975ba97e3150b278b60a3e6610e0764be620e1727c4390ae836a1
