Concept 2.2 / Lozenge

Silicone Monolith

R10Earlier version

Device dimensions

mm

Modeled size · CAD R10

Width
88 millimeters
Height
136 millimeters
Depth
27 millimeters

Continuous silicone wrap with calibrated controls and a short sealed microphone duct.

Read handoff · PDFDownload build files · 32.4 MB

4-page overview with technical appendices. The ZIP includes the same PDF and matching files.

Materials and process

SLS nylon structure, proposed Dragon Skin 30 silicone skin (30 Shore A), silicone foam seals and PET battery straps. Confirm powder grade, procurement and process with the supplier.

Customise this design in 3D

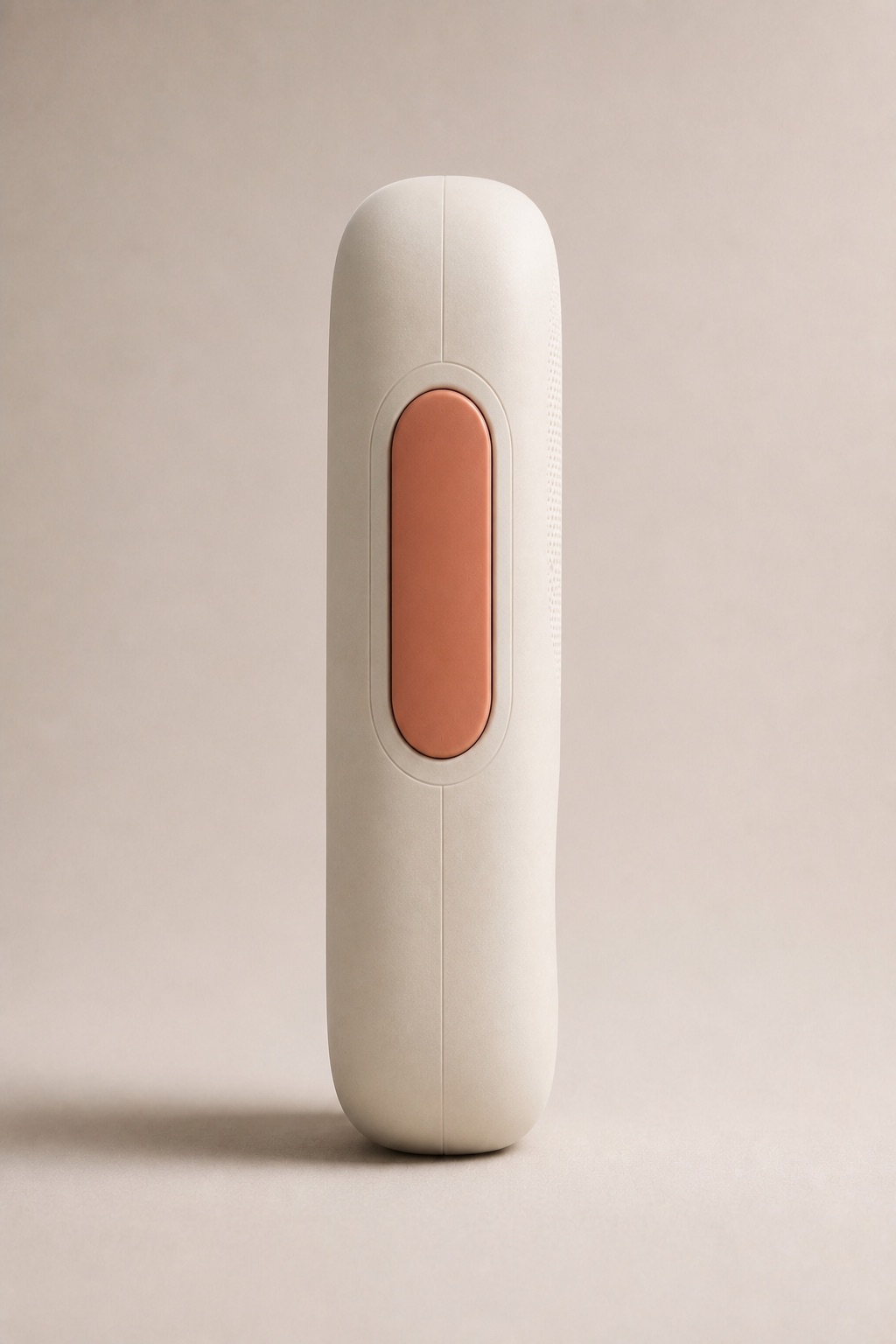

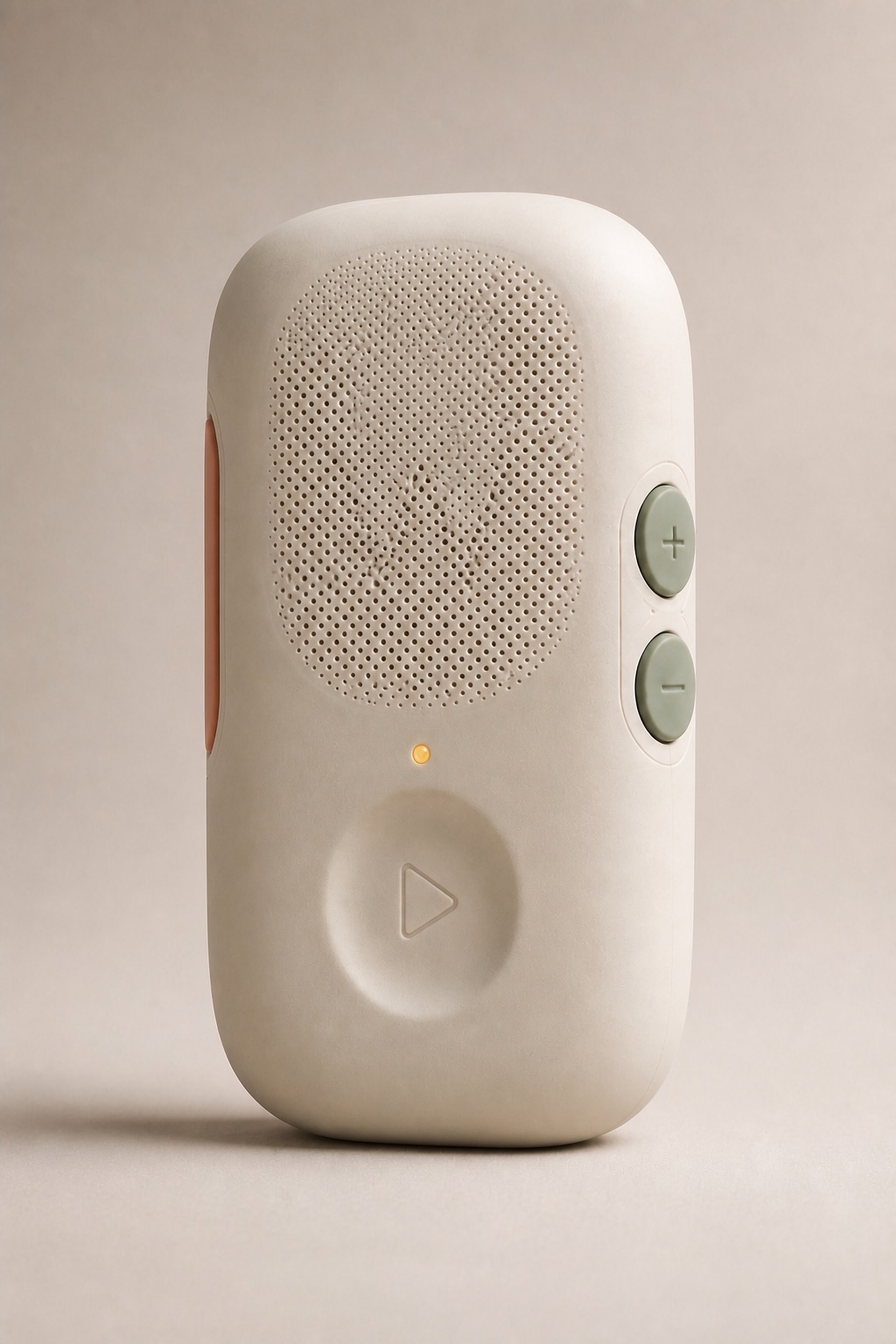

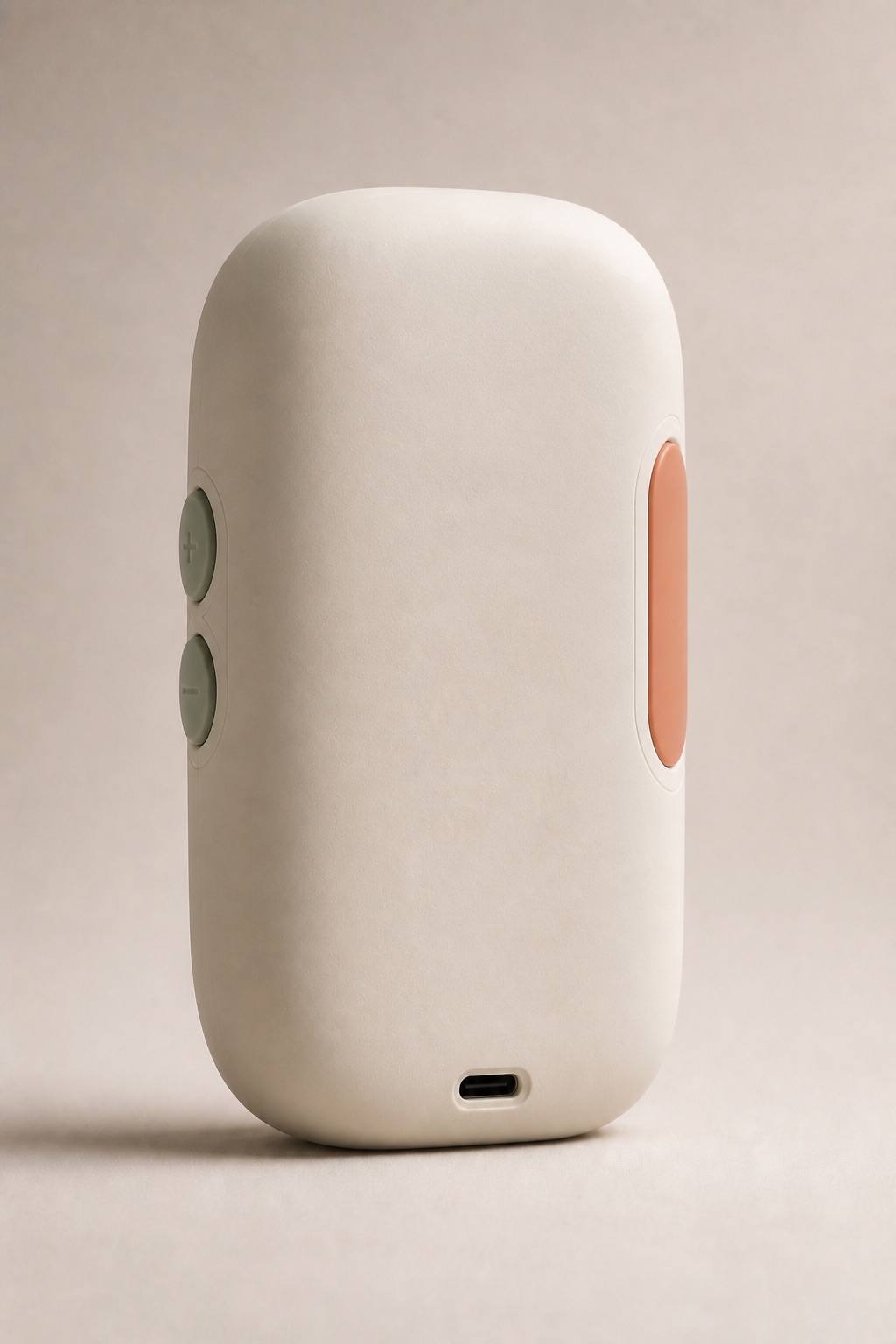

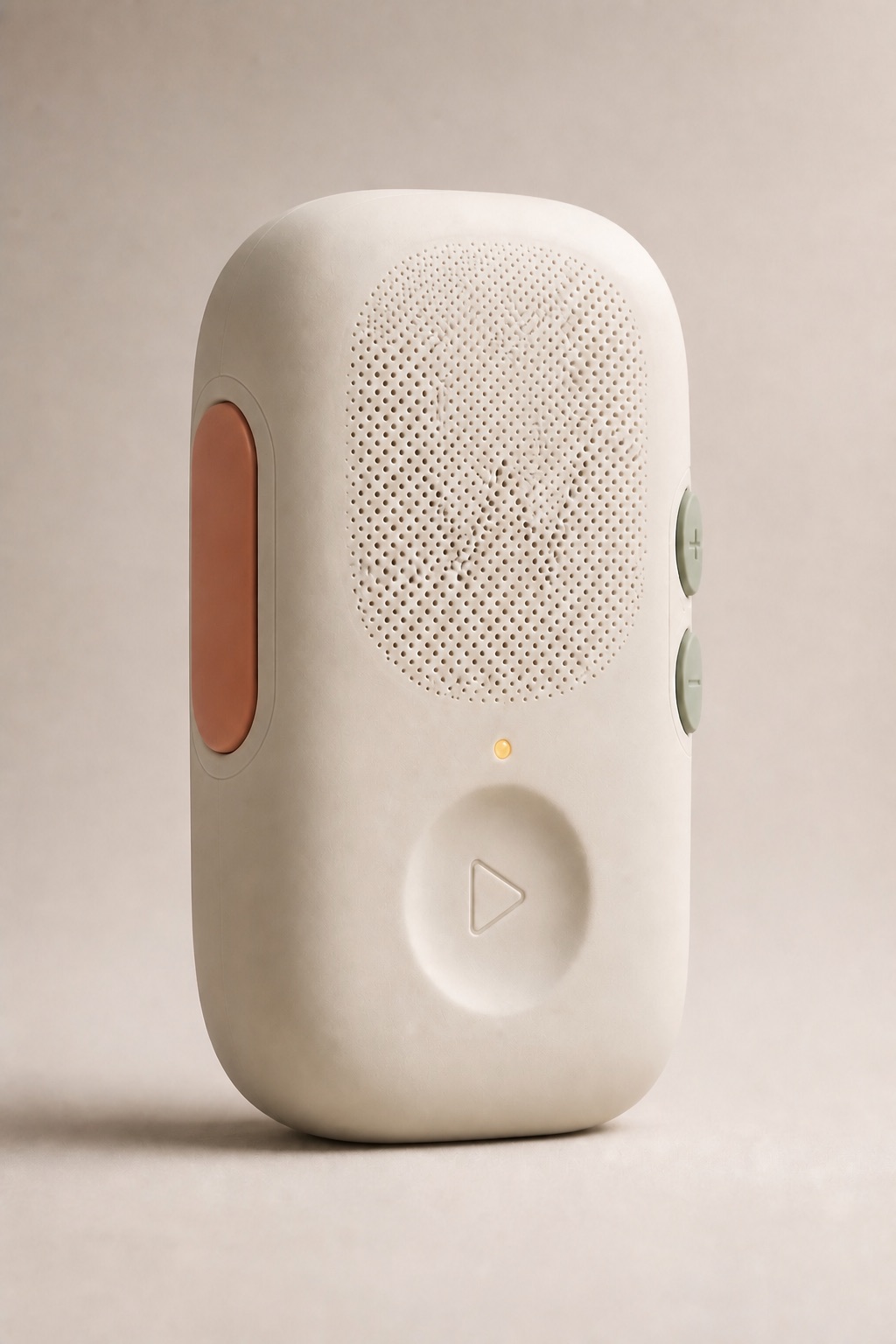

Silicone Monolith inspiration, view 1 of 6
1/6

Front · Drag, use the arrow keys, or choose an angle.

Design inspiration. See CAD for the modeled geometry.

Material lab 2.2

A closer look. A finish that’s yours.

THE MATERIAL EDITEngineering R10
Walkie One 2.2, R10 original finish preview
Bringing the details into focus…
01 / THE COLLECTION

Original2.2

2.2 · R10 source finish.

Drag to discover

R10 engineering · 88 × 136 × 27 mm modeled size. Exploded offsets illustrate the assembly. Materials and colours are screen previews.

Original build scope

What to build first

One rigid fit set plus C01 silicone/registration, C02 microphone route, C03 front mechanism and C04 side mechanism samples. Resolve precision guides and silicone processing before a complete finished wrap.

Confirm before the affected stage

Before guide/casting samples
Confirm matched-guide process, spring sourcing, thin silicone mold/vent/registration approach and actual mesh stock.Rapid
Before functional mechanism acceptance
Approve switch post-contact force/travel and spring/return evidence; provide the actual switch lot.Walkie One mechanical/electrical
Before powered/full finished article
Actual populated PCB, battery limits, harness and cable; acoustic comparison of the revised duct; signed silicone/marking samples.Walkie One electrical/design

Inside the build package / R10

Files for this earlier build.

The handoff explains the build. The part schedule identifies quantities, materials and exact filenames. Check each file’s material and process role. Engineering review files are not a fabrication release.

  • Parts to print
  • Other manufacturing
  • Assembly and records
  • Required fit checks

Includes the handoff PDF, parts schedule and file manifest. Assembly views show how the represented parts fit together. Follow the handoff’s scope and open-item list before making parts.

Supporting engineering and archive

For individual assembly files, working inspection records or original engineering sources. The two downloads above contain the curated handoff. Original packages include development history and optional studies.

Original engineering archive

Walkie_One_Concept_2_2_R10_Package.zip

ZIP · 205.1 MB

Includes editable sources and supporting evidence. Use the primary download for the current handoff.

File checksumSHA-256: fab833a54aa0cf12d7c65e3cc59dbfce48d1d05e28f7e7147cd19386e85e6040
Download Original engineering archive
Individual assemblies and working records

Case assembly

Walkie_One_02_2_R10_CASE_ONLY.step

STEP · 13.4 MB

File checksumSHA-256: 17f77b9320f81555d850ea59bf38ca17eb5ae8017f340637fffc25b08e5731bb
Download Case assembly

Bill of materials

BOM.csv

CSV · 28 KB

File checksumSHA-256: d357eb3961a65a44ce2bc30d3dab0fed5e3c9e6dc69ec9b4272344b155f3e083
Download Bill of materials

Assembly Acceptance Record

Assembly_Acceptance_Record.csv

CSV · 1 KB

File checksumSHA-256: 4f0d0f6f120eafd22c826681e901b0f0eca70f921d7fa0cce51797cf802f7ecf
Download Assembly Acceptance Record

Assembly with supplied hardware references

Walkie_One_02_2_R10_WITH_PCB.step

STEP · 70.8 MB

File checksumSHA-256: 4c39ba10ed868880910cc386bedd2b04303da797bdbe40925905f2d9d411c308
Download Assembly with supplied hardware references

Inputs and decisions to confirm

Rapid_Open_Items.csv

CSV · 1 KB

File checksumSHA-256: 1cb1b4a2974870871ecf6086fa774eabe77150822f6ebd79d7bbed5e49a37667
Download Inputs and decisions to confirm

Revised calibrated controls, removable mechanism parts and a shortened microphone duct. Continuous silicone exterior retained. Casting, switch loading, acoustics, cable seating and physical assembly still require qualification.

Source: Local CAD package · R10. CAD and qualification status are documented in the handoff.
