Walkie One

Concept 14.2 / Lozenge

Field Recorder

R9Earlier version

Device dimensions

mm

Substrate · CAD R9

Width
108 millimeters
Height
150 millimeters
Depth
27.4 millimeters

Calculated finished depth: 27.945 mm. Maximum finished depth: 28 mm.

Thin sculpted body with a stainless W grille, tactile coating and precision internal mechanisms.

Read handoff · PDFDownload build files · 19.1 MB

4-page overview with technical appendices. The ZIP includes the same PDF and matching files.

Materials and process

Proposed SLS PA12 chassis, 0.8 mm 304 stainless grille, CNC acetal/POM mechanisms, aluminum play cap, spring-steel elements and FR4 carriers. These are prototype candidates; the custom-part BOM defines each process.

Customise this design in 3D

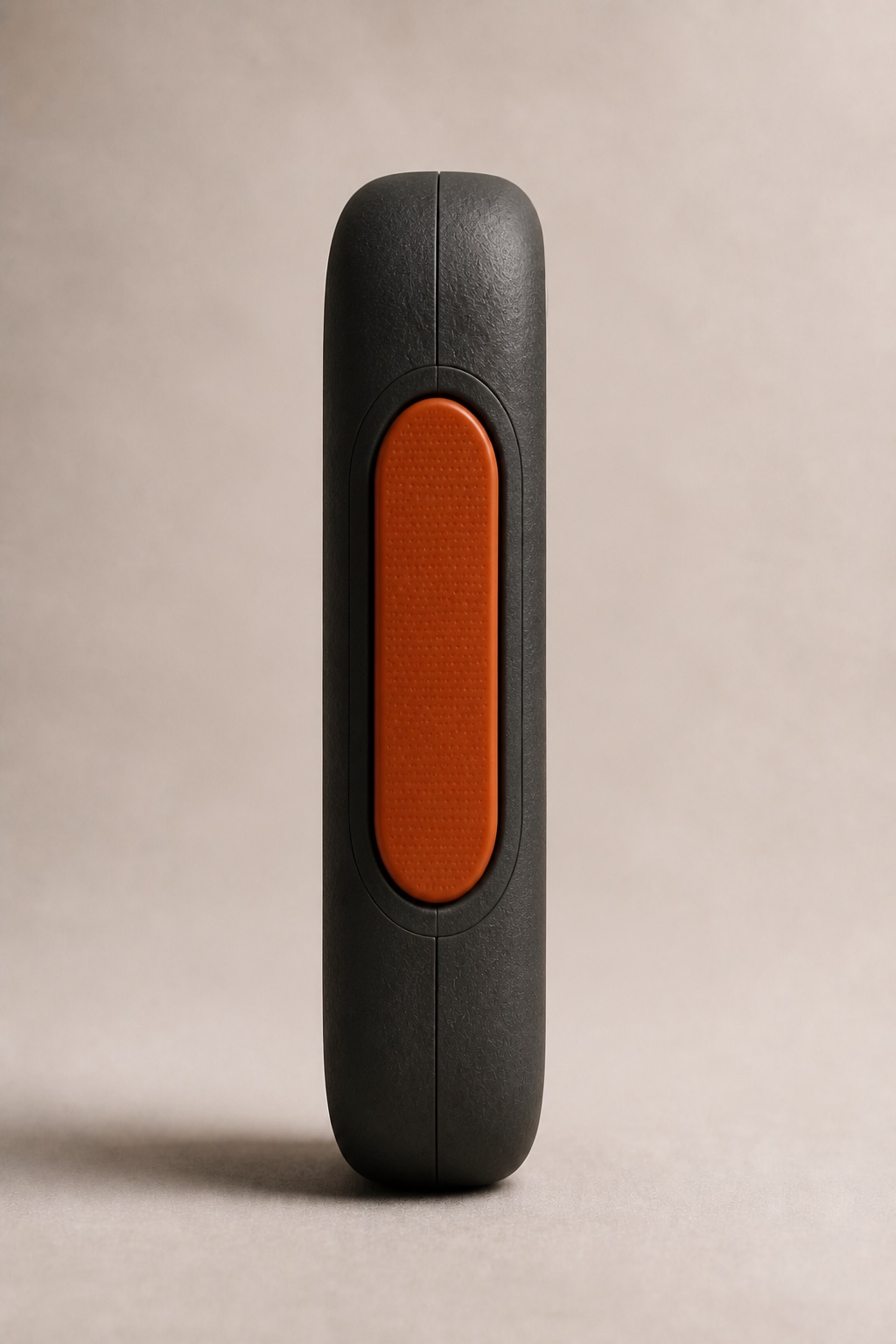

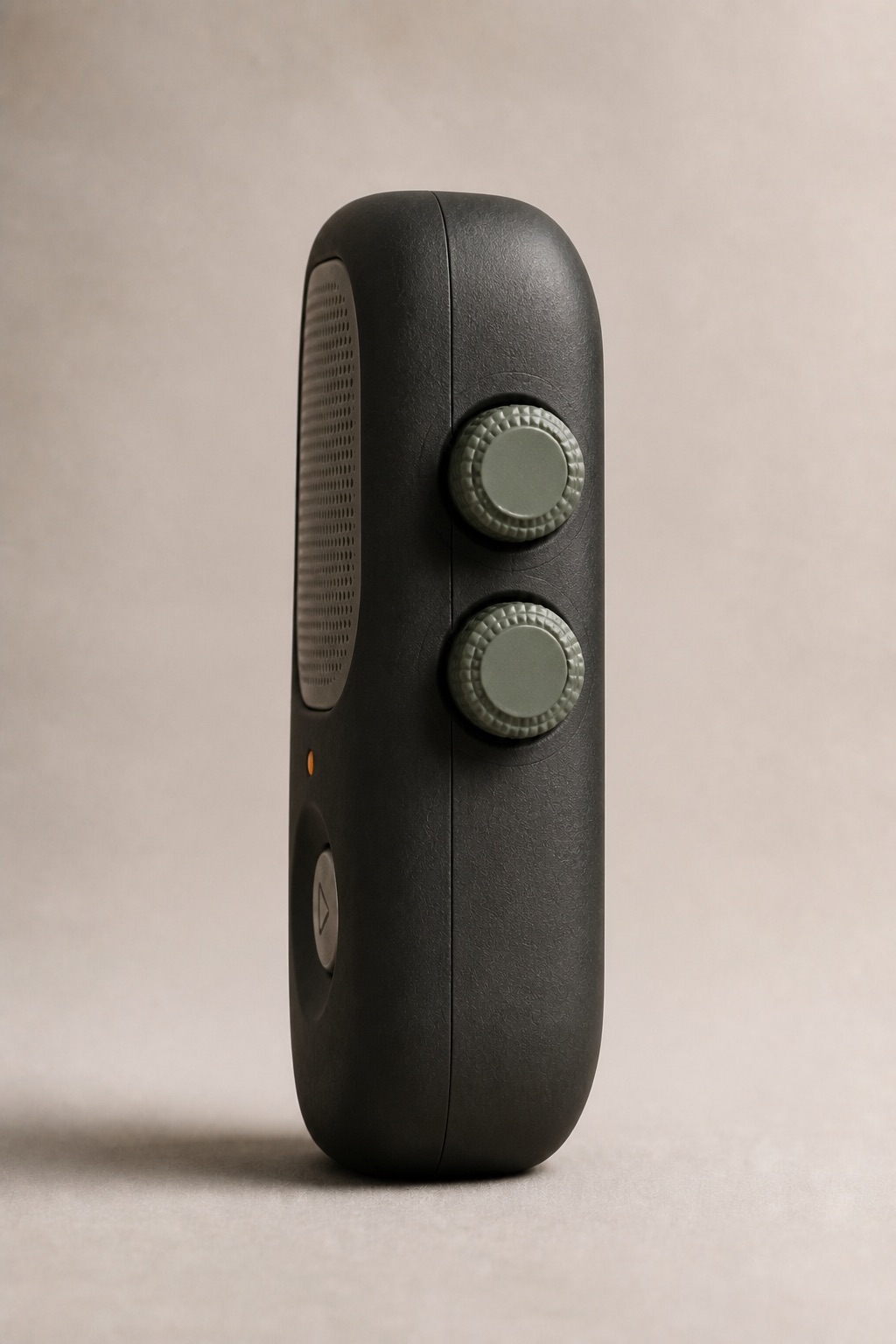

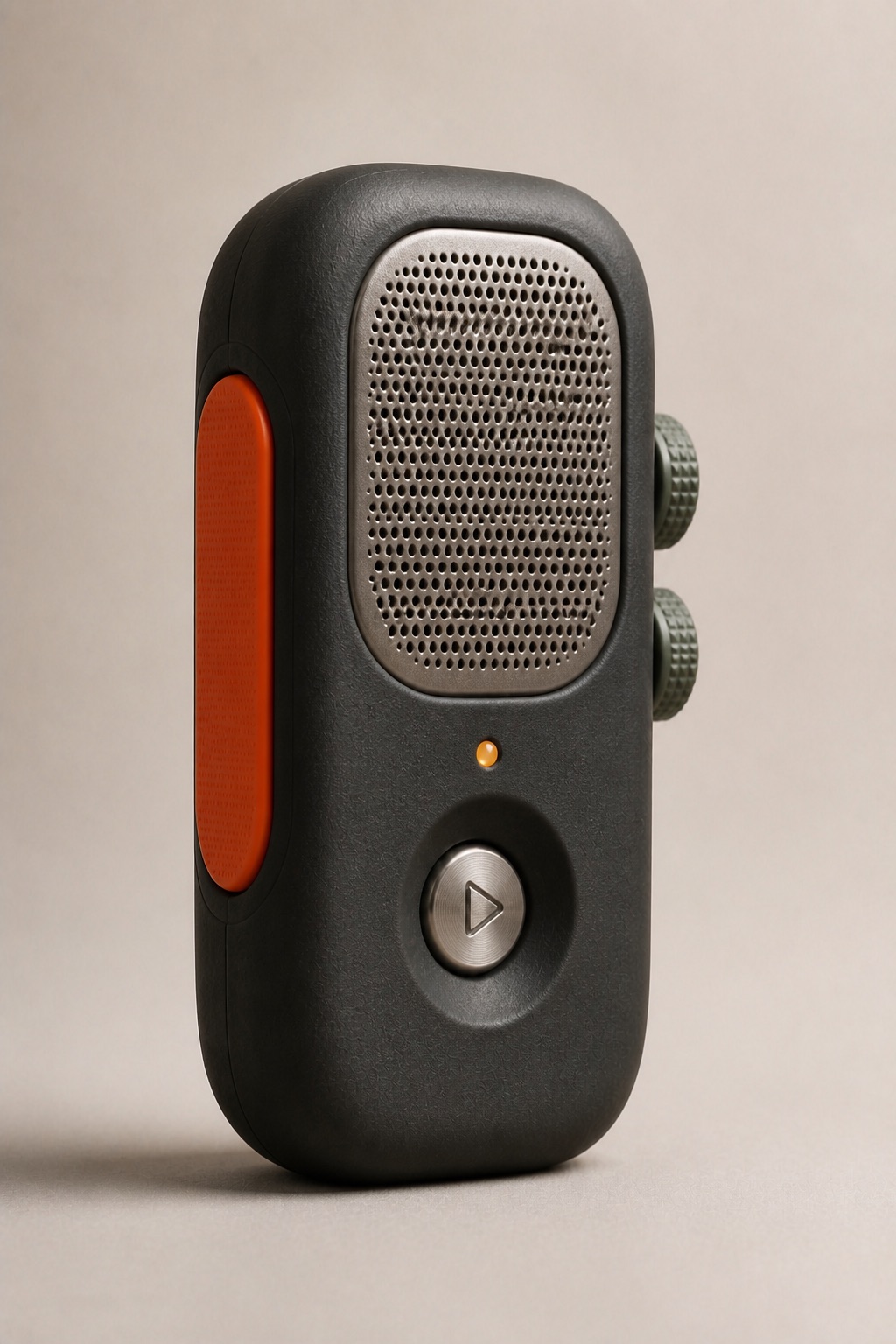

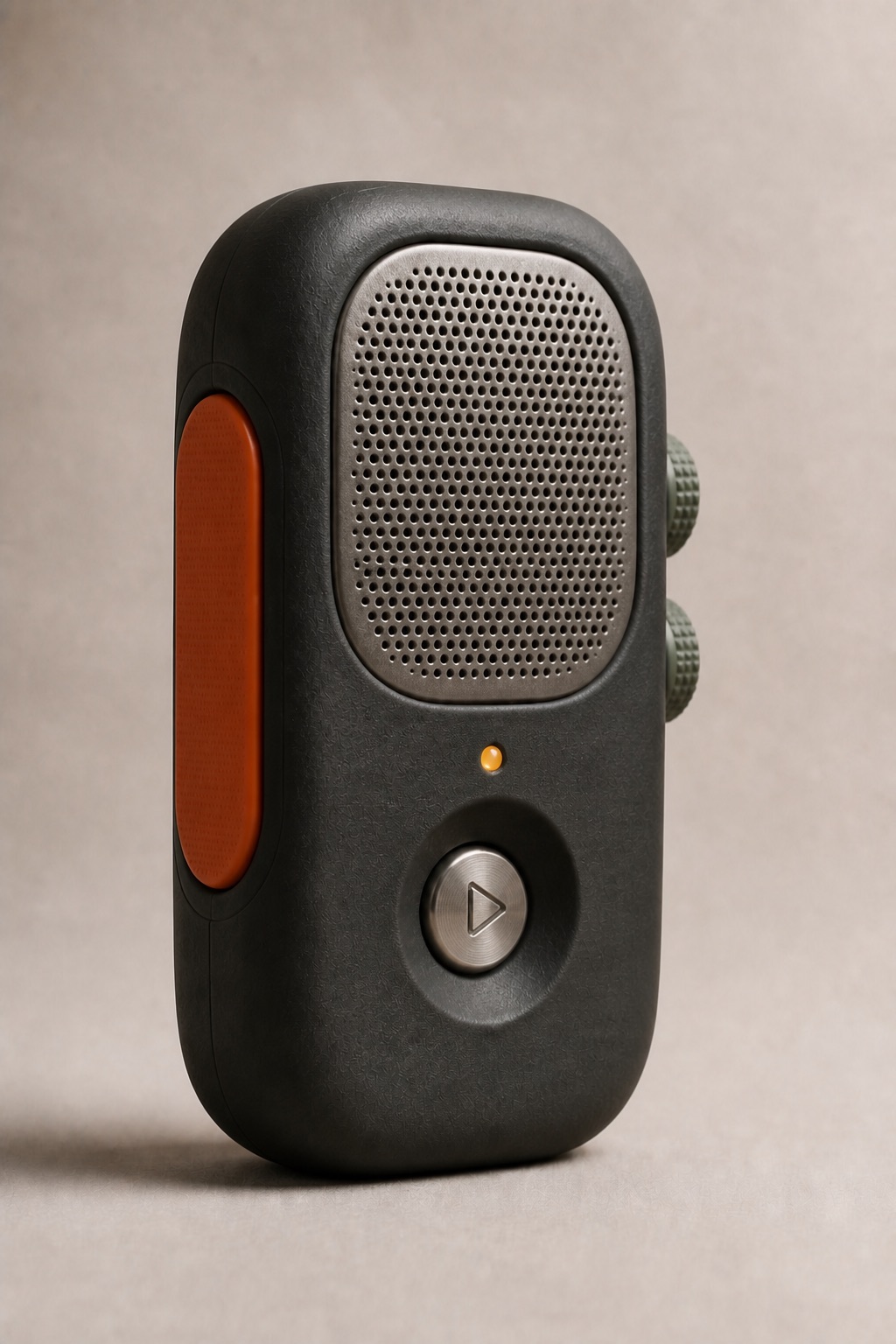

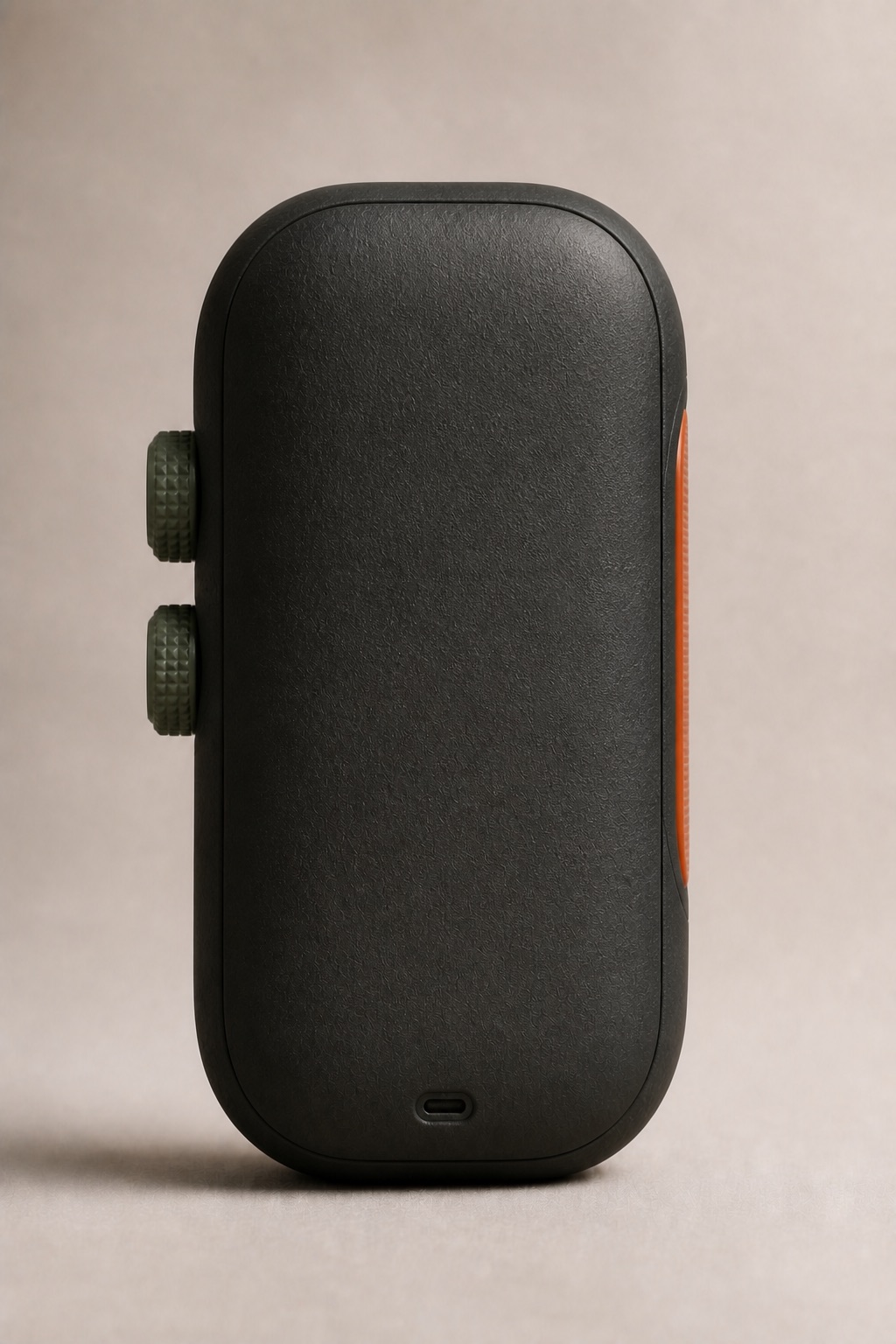

Field Recorder inspiration, view 1 of 6
1/6

Front · Drag, use the arrow keys, or choose an angle.

Design inspiration. See CAD for the modeled geometry.

Material lab 14.2

A closer look. A finish that’s yours.

THE MATERIAL EDITEngineering R9

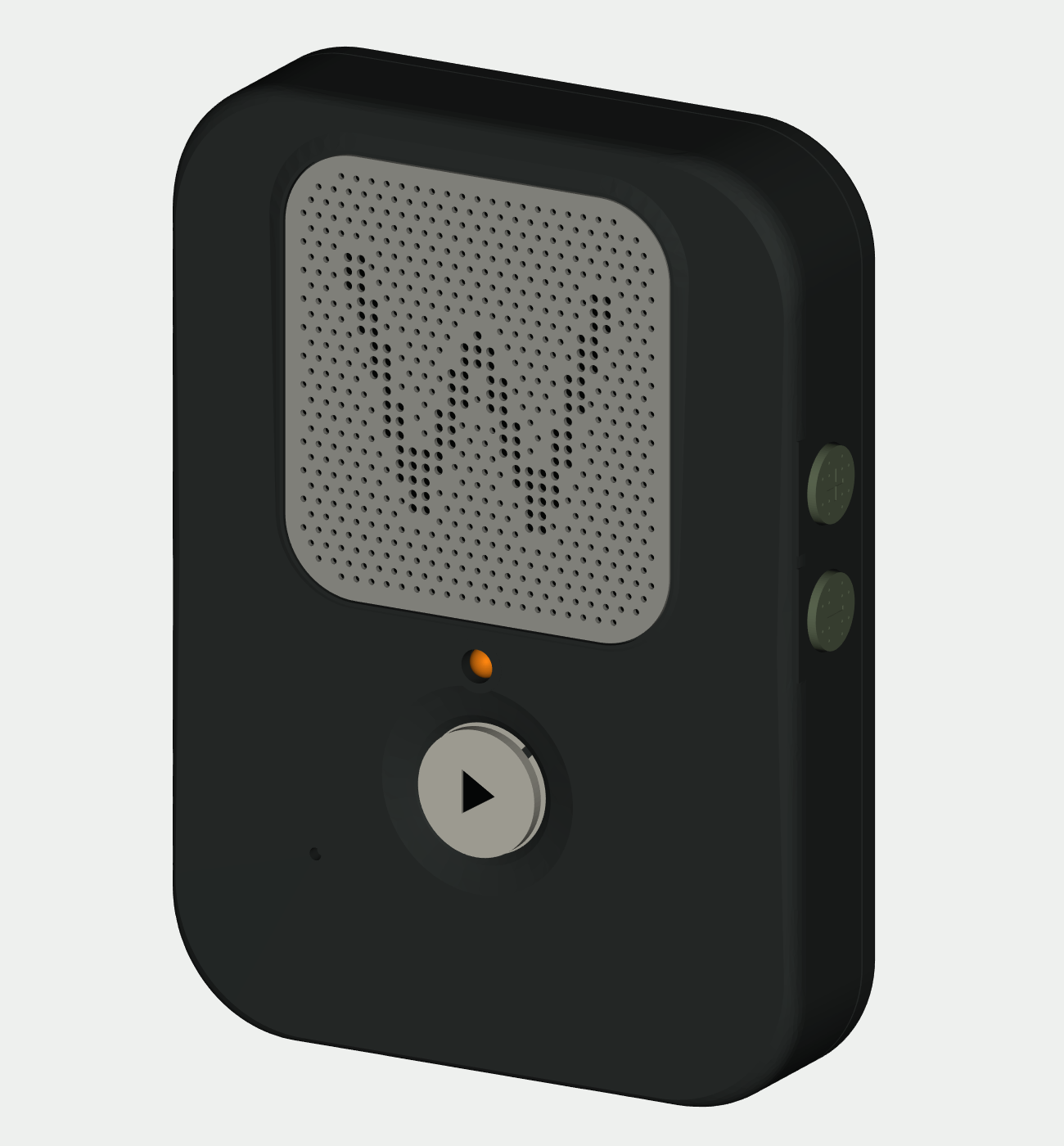

Walkie One 14.2, R9 original finish preview
Bringing the details into focus…
01 / THE COLLECTION

Original14.2

14.2 · R9 source finish.

Drag to discover

R9 engineering · 108 × 150 × 27.4 mm substrate. Exploded offsets illustrate the assembly. Materials and colours are screen previews.

Original build scope

What to build first

Rear and front boss coupons, precision mechanism/nest samples and F1 finish/grille samples, then one unpowered full fit set. Agree how to achieve the 28.00 mm finished maximum before a finished article.

Confirm before the affected stage

Before precision parts
Confirm guide tolerances, crossbar/bushing and grille process; identify outsourced work and any requested drawing changes.Rapid
Before finished article
F1 chemistry and thickness control, strength/torque coupons and round volume-cap appearance proposal.Rapid proposes; Walkie One design/mechanical approves
Before powered acceptance
Switch load approval, spring data, populated electronics/harness, actual battery and cable, acoustic/thermal/RF tests.Walkie One electrical/mechanical

Inside the build package / R9

Files for this earlier build.

The handoff explains the build. The part schedule identifies quantities, materials and exact filenames. Check each file’s material and process role. Engineering review files are not a fabrication release.

  • Parts to print
  • Other manufacturing
  • Assembly and records
  • Required fit checks

Includes the handoff PDF, parts schedule and file manifest. Assembly views show how the represented parts fit together. Follow the handoff’s scope and open-item list before making parts.

Supporting engineering and archive

For individual assembly files, working inspection records or original engineering sources. The two downloads above contain the curated handoff. Original packages include development history and optional studies.

Original engineering archive

Walkie_One_14_2_R9_Prototype_Proposal.zip

ZIP · 141.1 MB

Includes editable sources and supporting evidence. Use the primary download for the current handoff.

File checksumSHA-256: 237b7005b9ded08ca3cde926d133f72e12a6f21c29c623cdf7a44ab5b48a3f87
Download Original engineering archive
Individual assemblies and working records

Reference assembly

Walkie_One_14_2_R9_Assembly.step

STEP · 79.2 MB

File checksumSHA-256: 12a2d14bfafb72dbdebe987aadf0dfc12c09182ae46622f74d38ebc61c341b04
Download Reference assembly

Bill of materials

R9_BOM_All_Items.csv

CSV · 46 KB

File checksumSHA-256: afac506851e1566a548cf514896c317f4bde149c36cc261fe3a10f1ae0e4afbe
Download Bill of materials

R9 BOM Custom Parts

R9_BOM_Custom_Parts.csv

CSV · 11 KB

File checksumSHA-256: 1885449ddd7278b1b3126cd14fbb76c2570c3c64405c11b1ec54997f757c61c9
Download R9 BOM Custom Parts

Physical Test Record

Physical_Test_Record.csv

CSV · 1 KB

File checksumSHA-256: 5d808bbe311f84015867910f33770fdfdfc1c9eb64b379876e13ddffda7e9b25
Download Physical Test Record

Custom parts assembly

Walkie_One_14_2_R9_Custom_Parts.step

STEP · 8.6 MB

File checksumSHA-256: 6f9ecc6c8de26c83c0cfe9733810d3890239a13f6ba2a8d5b23acd54f5b0613f
Download Custom parts assembly

Inputs and decisions to confirm

Rapid_Open_Items.csv

CSV · 1 KB

File checksumSHA-256: 9d3f7fc916fe1612aa2fc8529163a4924d3209aeb0988fe1a66894915c4741ab
Download Inputs and decisions to confirm

Shallow crown, rolled perimeter, curved play surround and round volume-cap proposal at the approved positions. Metal crossbars and revised precision mechanisms replace thin blind pilots. The deeper Alternative B is separate and exceeds the 28 mm requirement.

Source: Adam / local engineering · R9. CAD and qualification status are documented in the handoff.
